Technical Specification

Version 1.2 – Release Candidate 1 – May 20, 2021

THIS DOCUMENT IS A RELEASE CANDIDATE FOR A PROPOSED FIX TECHNICAL STANDARD. A RELEASE

CANDIDATE HAS BEEN APPROVED BY THE GLOBAL TECHNICAL COMMITTEE AS AN INITIAL STEP IN

CREATING A NEW FIX TECHNICAL STANDARD. POTENTIAL ADOPTERS ARE STRONGLY ENCOURAGED TO

BEGIN WORKING WITH THE RELEASE CANDIDATE AND TO PROVIDE FEEDBACK TO THE GLOBAL

TECHNICAL COMMITTEE AND THE WORKING GROUP THAT SUBMITTED THE PROPOSAL. THE

FEEDBACK TO THE RELEASE CANDIDATE WILL DETERMINE IF ANOTHER REVISION AND RELEASE

CANDIDATE IS NECESSARY OR IF THE RELEASE CANDIDATE CAN BE PROMOTED TO BECOME A FIX

TECHNICAL STANDARD DRAFT.

Table of Contents

Introduction

This document serves as a specification of the FIX Algorithmic Trading Definition Language (FIXatdl®), a markup language that works in conjunction with the FIX Protocol. FIXatdl® is used to define the FIX interface of algorithmic order types. An algorithmic order interface description consists of: a description of tags that are to be included in FIX NewOrderSingle(35=D), OrderCancelRequest(35=F), and OrderCancelReplaceRequest(35=G) messages that are to be sent to an order recipient; rules for validating the data entered into an order form by a user; suggestions on how to render GUI controls within an order entry form; and rules affecting the visual state of the GUI controls as information is being entered into the order form.

Rather than describing interfaces in a natural language, such as English, which can be subject to differing interpretations, FIXatdl® standardizes the way algorithmic interfaces are described thus reducing interpretation errors and allowing for the creation of documents in a machine-readable format. It is envisioned that applications supporting this standard would be able to receive an XML document conforming to FIXatdl® and, based on the information within this document, be able to:

  • Dynamically display an order ticket containing algorithmic order parameters.
  • Change the visual state of GUI controls based on user input.
  • Validate the values entered into the ticket before an order is transmitted.
  • Create and transmit a FIX order message with the appropriate standard and/or user-defined fields (UDFs) populated.

These capabilities are achievable without the need for custom software development or subsequent product deployment.

Audience

This specification is intended for those interested in either: (1) developing applications with FIX order entry capabilities supporting order type definition via FIXatdl®; or (2) algorithmic order providers who wish to describe the interface to their algorithms in FIXatdl®.

FIXatdl® Schema Files

A set of XML Schema files has been created to describe the structure of a FIXatdl® document instance. These files can be used with commercial XML parsing software to validate a FIXatdl® document instance. They can also be used with XML data binding utilities to generate source code which maps classes to XML representations. The files are grouped into two functional categories:

  • Data Contract – Defines the wire-value interface of an algorithmic order. For each algorithm/strategy it defines the valid set of parameters and availability of the strategy for specific markets. For each parameter of an algorithm/strategy it defines the type; the legal range of values (including minimum and maximum values); whether it is optional or required; and value constraints based on certain conditions or the value of other parameters (validation rules).
  • GUI – Defines the recommended GUI controls that should be rendered on the order entry screen and their location on the screen. Defines the rules that affect the state of a GUI control. Provides a mapping of the on screen controls with the parameters of the data contract.

The constructs of the schema files have been categorized this way to ensure that the data contract is de-coupled from the GUI. This provides some flexibility for E/OMS vendors in how FIXatdl® is applied. For example, data contract functions, such as parameter validation, may be performed in an application downstream from the E/OMS without the need for the XML that describes the GUI.

The FIXatdl® language definition is contained within six XML Schema files:

XML Schema file / namespacePurpose
fixatdl-core-1-2.xsd

http://www.fixprotocol.org/FIXatdl-1-2/Core

Data: Defines attributes and elements that are used to describe the data content of the algorithm and the parameters.
fixatdl-validation-1-2.xsd

http://www.fixprotocol.org/FIXatdl-1-2/Validation

Data: Defines attributes and elements used to author rules that are applied to the parameter values as a validation check. These rules can be simple where boundary conditions are checked, or complex where compound boolean expressions involving several parameters are evaluated.
fixatdl-layout-1-2.xsd

http://www.fixprotocol.org/FIXatdl-1-2/Layout

GUI: XML constructs to describe how a parameter should be rendered within a user interface – this includes recommendations about GUI controls and their relative location within the interface.
fixatdl-flow-1-2.xsd

http://www.fixprotocol.org/FIXatdl-1-2/Flow

GUI: Provides the ability to dynamically affect the behavior of a GUI control. Rules can be created to enable or disable parameters based on values entered by the user in other parameters.
fixatdl-regions-1-2.xsd

http://www.fixprotocol.org/FIXatdl-1-2/Regions

Data: Enumeration values for countries within three regions: TheAmericas, EuropeMiddleEastAfrica and AsiaPacificJapan.
fixatdl-timezones-1-2.xsd

http://www.fixprotocol.org/FIXatdl-1-2/Timezones

Data: Lists enumeration values for world timezones based on zoneinfo database.

Key Concepts

Element Hierarchy

The FIXatdl® schema provides a set of XML elements that are used to create a conforming FIXatdl® document. These elements are described later in this section. The attributes of each of these elements are described in latter in this document.

In a FIXatdl® document an algorithm provider can define any number of algorithmic order interfaces by using multiple Strategy elements. Each strategy is identified by a unique name that must be provided in the XML of each of the Strategy elements. Instances of documents begin with the root element Strategies and follow the hierarchy:

<Strategies>
    <Strategy>
        ... strategy definition ...
    </Strategy>
    <Strategy>
        ... strategy definition ...
    </Strategy>
        ...
    <Strategy>
        ... strategy definition ...
    </Strategy>
</Strategies>

At the root level, the algorithm provider must specify which tag to use to identify the individual strategies. (At one time TargetStrategy(847) was intended to carry this information. However, most providers use a user-defined field for this purpose.) For example to indicate that tag 25009 will be used to identify strategies the Strategies element would be written as

<Strategies strategyIdentifierTag="25009"/>

Parameters for each strategy are defined via Parameter elements. Validation rules are defined via StrategyEdit elements. Each strategy can have any number of parameters or validation rules. An algorithm can have only one section where the layout of the controls is defined. A layout is defined via the StrategyLayout element. So when looking deeper into the strategy definition, one can see that it follows the hierarchy:

<Strategy>
    <Parameter>
    <Parameter>
    ...
    <Parameter>
    <StrategyEdit>
    <StrategyEdit>
    ...
    <StrategyEdit>
    <StrategyLayout>
</Strategy>

The following figure shows the hierarchy of elements in tree form starting from the root element, Strategies. The XML Schema values minOccurs and maxOccurs are given for each branch of the tree. Elements with optional or required child elements are indicated by double-line borders. Elements with no children (leaf nodes) have single-line borders. Abstract elements, ones which require the use of a substitution group, are shaded. The elements Parameter, StrategyLayout, and StrategyEdit are somewhat complex; the hierarchy of their children is shown in figures 2 through 4.

Note that the figures that follow are intended to give a generalized structure of the schema and do not necessarily show all the child elements. Please refer to the FIXatdl® XML Schema files for a complete list and definition of the FIXatdl® elements.

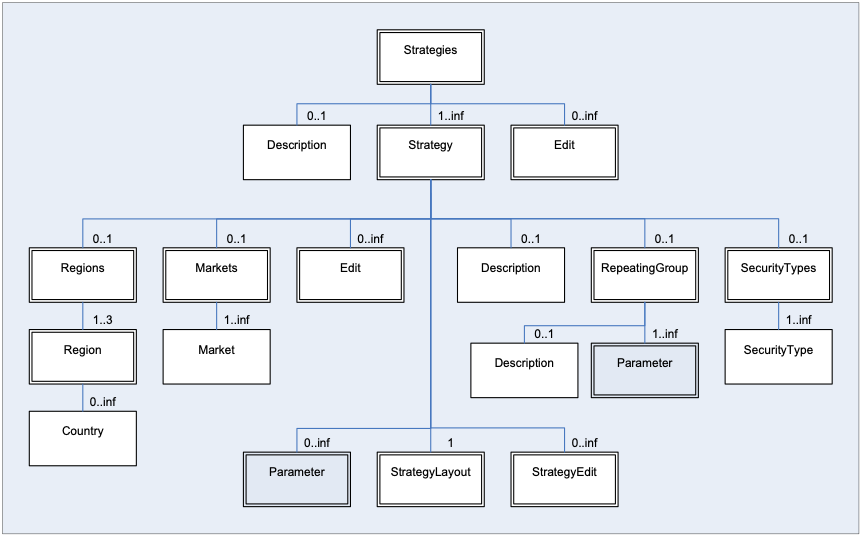

Root Element Hierarchy

The following figure gives the hierarchy of elements descending from the Parameter element.

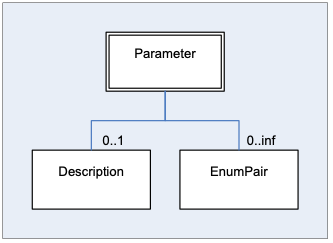

Parameter Hierarchy

The following figure gives the hierarchy of elements descending from the StrategyLayout element. This element is responsible for binding GUI controls to parameters and describing their arrangement on the order-entry screen.

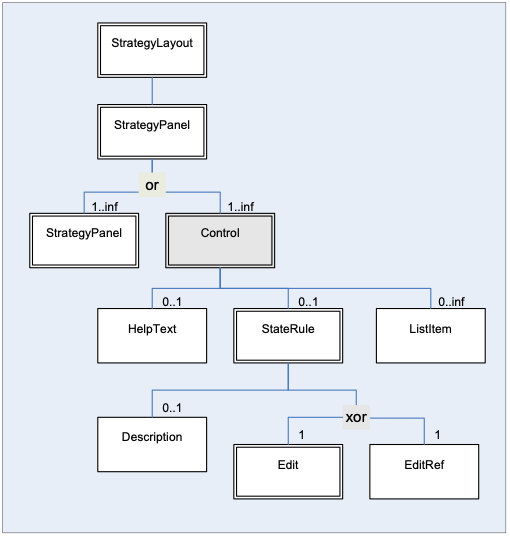

StrategyLayout Hierarchy

The following figure shows the StrategyEdit hierarchy. This element is used to describe validation rules which are applied to the values of a strategy’s parameters at order-generation time. Each StrategyEdit element must contain a single Edit element (may contain further nested Edit rules) which is used to describe a particular condition that must be met in order to pass validation.

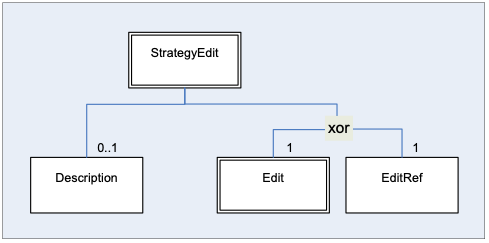

StrategyEdit Hierarchy

Parameter Description

The interface of an algorithmic order type is described by a set of FIX messages, the required, optional and user-defined fields of those messages, and user-defined restrictions on the range of values for particular fields. In general, when speaking of the parameters of an algorithmic order one is, in fact, referring to the user-defined fields of a NewOrderSingle(35=D), OrderCancelRequest(35=F), and OrderCancelReplaceRequest(35=G) message. (In some cases a parameter may also refer to a standard FIX field, one with a tag number in the range 1-5000, that broker-dealers commonly included in their algorithmic interface specifications, such as EffectiveTime(168) and ExpireTime(128).)

Parameters are strictly described in FIXatdl® by the target firm who will receive them (order recipients), and are communicated via an XML file to various senders (order initiators). To describe these parameters, FIXatdl® provides the Parameter element. Parameter elements are identified by their “name” attribute. There is no limit to the number of parameters a strategy may have as long as each is uniquely identified at the strategy level. Besides a parameter’s name, other parameter attributes include: its type; its maximum and minimum values (if applicable); its corresponding FIX tag number; and its usage (optional vs. required). For example, the following code snippet describes an integer type parameter:

<Parameter name="SampleRate" xsi:type="Int_t" fixTag="28000"
use="optional" minValue="1" maxValue="9"/>

This listing describes a parameter named “SampleRate” which can optionally be populated in tag 28000 of an order message. The attributes “minValue” and “maxValue” describe the minimum and maximum values that the recipient of an order message is expecting. Orders with “SampleRate” values outside that range may be rejected. The attribute “xsi:type” describes the parameter’s type which must be one of the datatypes specified by the FIX Protocol. FIXatdl® provides enumeration values for xsi:type that map directly to the FIX datatypes. (An explanation of xsi:type can be found in this document in the section Abstract Element Extensions.)

For certain parameters it may be appropriate to limit the legal values to a set of enumerated values. This is done by adding child EnumPair elements to the Parameter element. Each EnumPair represents one of the enumerated values expected to be transmitted over the wire. For example:

<Parameter name="Aggression" xsi:type="Char_t" fixTag="28001" use="required">
    <EnumPair enumID="low" wireValue="L"/>
    <EnumPair enumID="medium" wireValue="M"/>
    <EnumPair enumID="high" wireValue="H"/>
</Parameter>

This describes the “Aggression” parameter. An order recipient would expect to receive one of the values, “L”, “M” or “H” in tag 8001 of an order message. The attribute EnumPair/@enumID is a unique identifier of EnumPair elements.

If a user of an order-entry system were to submit an order with “SampleRate” set to 5 and “Aggression” set to “high”, the order recipient would expect to receive a FIX message containing a substring similar to:

...35=D|11=0001|55=AXP|44=77.25| ... 28000=5|28001=H ...

Validation Rules

Validation rules are defined by use of the StrategyEdit element. This XML element enables the creation of complex and conditional rules which can be applied to the orders generated by an E/OMS. The goal of a validation rule is to process the

values of the strategy parameters after they have been entered by the user. Each validation rule consists of a condition and an error message. If the condition is true then the values of the parameters are valid. If the condition is false, then the values of the parameters are invalid and the provided error message should be displayed. That is to say, validation conditions are much like assertions. When an assertion has failed an error has occurred.

The conditions described within a validation rule are defined by use of the Edit element. An Edit element defines a Boolean expression where values of parameters can be compared to one another or to constant values.

To illustrate, consider the most common parameters of all algorithms, StartTime and EndTime. Their description and a rule guaranteeing that StartTime precedes EndTime can be described by the following statements:

<Parameter name="StartTime" xsi:type="UTCTimestamp_t" fixTag="28005" use="required">
<Parameter name="EndTime" xsi:type="UTCTimestamp_t" fixTag="28006" use="required">
<StrategyEdit errorMessage="Start Time must precede End Time.">
    <Edit field="StartTime" operator="LT" field2="EndTime"/>
</StrategyEdit>

Here both StartTime and EndTime are defined as UTCTimestamp parameters. At validation time, the rule described in the StrategyEdit element instructs the E/OMS to perform an evaluation of the Boolean expression provided by the Edit element. In this case a comparison of StartTime and EndTime will be made using the “LT” (less than) operator. If StartTime is less than EndTime then the parameter values are deemed to be valid. However, if StartTime is greater than or equal to EndTime then the parameter values are invalid and the E/OMS can inform the user by displaying the error message in a dialog box.

For more complex rules, Boolean expression may be formed by multiple Edit elements organized in an expression tree using logical operators AND, OR, XOR and NOT. For example consider these declarations:

<Parameter name="ParticipationRate" xsi:type="Float_t" fixTag="28008" use="optional"/>
<StrategyEdit errorMessage="If Participation Rate is entered it must be between 1 and 50">
    <Edit logicOperator="OR">
        <Edit field="ParticipationRate" operator="NX"/>
        <Edit logicOperator="AND">
            <Edit field="ParticipationRate" operator="GE" value="1"/>
            <Edit field="ParticipationRate" operator="LE" value="50"/>
        </Edit>
    </Edit>
</StrategyEdit>

This is a tree of Edit elements. The root Edit element is describing a logical “OR” condition asserting that either “ParticipationRate” was not provided or its value is in the range from 1 to 50. Note how in the “AND” expression a parameter value is compared not to another parameter but to a constant value.

Also note that the logical operators, AND and OR, can have more than two operands. Furthermore, they both perform short-circuit evaluation of their operands. (I.e. their operands are evaluated from left to right. As soon as the value is known, evaluation of the expression stops and the value is returned. Consequently, not all operands need to be evaluated. For example, consider the previous example in which “ParticipationRate” is an optional parameter. It is quite possible that the user does not provide a value for “ParticipationRate”. If that is the case then evaluation of the “OR” statement will terminate after it is established that its first operand, <Edit field="ParticipationRate" operator="NX"/>, is true. The “AND” statement that follows is never evaluated – which is a good result since, if one attempts to evaluate it, it is quite possible that a “Null Reference” error would occur.) That being the case, it is important that XML parsing or binding libraries maintain the order of the elements as they appear; otherwise unexpected results may occur.

The logical operator XOR can also have more than two operands. As a convention, XOR is defined as “one and only one”, which means it evaluates to “true” when one and only one of its operands is true. If none or more than one of its operands is true then XOR is false. Short-circuit evaluation cannot be applied to XOR.

The “field” attribute of an Edit element is not restricted to strategy parameters. Standard order tags (those not described in a FIXatdl® instance but nevertheless are required tags of order, cancel and cancel/replace messages) may also be used to create Boolean expressions.

For example:

<StrategyEdit errorMessage="For IOC orders Participation Rate must
be between 1 and 25">
    <Edit logicOperator="OR">
        <Edit field="FIX_TimeInForce" operator="NX"/>
            <Edit field="FIX_TimeInForce" operator="NE" value="3"/>
            <Edit logicOperator="AND">
                <Edit field="ParticipationRate" operator="GE" value="1"/>
                <Edit field="ParticipationRate" operator="LE" value="25"/>
        </Edit>
    </Edit>
</StrategyEdit>

This rule incorporates the value of TimeInForce(59) which is a standard tag found in most order messages. The values associated with standard tags are those that are sent over the wire. For example, TimeInForce(59) is an enumeration of char values ranging from “0” to “9” and “A” to “C” (FIX Latest as of EP266). So care must be taken to assure the corresponding operand, “value”, is of a similar type. Support for these types of expressions is highly dependent on a vendor’s implementation of FIXatdl®. Not all standard tags may be available.

In cases where the field attribute is not recognized or not supported, the rule containing the offending Edit element should be skipped over by a vendor’s application and should not cause a validation error. The end-result will be the same as if the condition of the rule were true.

GUI Layout Description

In order to render a parameter within an order entry screen, an OMS must be able to pick an appropriate GUI control to display. For instance, a parameter representing a price would best be rendered as a number spinner control while a parameter representing a choice between limited numbers of values, such as “High”, “Medium” and “Low”, would best be rendered as a combo box.

Once the GUI controls have been selected, the OMS must appropriately arrange them on the screen. By using the elements and attributes of the Layout Schema, an algorithm provider can describe the GUI controls to use and describe how they should be arranged on the screen.

FIXatdl® does not attempt to dictate user-interface style or look-and-feel. It is designed to be platform neutral. The components that are provided are those typically found in .Net, Java and Web environments.

The layout schema allows GUI controls to be arranged by adding them to a container define by the StrategyPanel element. Controls within a panel may be arranged either vertically or horizontally. Panels themselves may be nested and arranged either vertically or horizontally as well. The attributes of the StrategyPanel element include

  • Title – a string representing the panel title which may or may not be displayed
  • Collapsible – a Boolean value indicating whether the panel can be collapsed.
  • Collapsed – a Boolean value indicating the panel’s initial state.
  • Orientation – defines whether the panel’s components should be vertically, horizontally or grid aligned.

An important aspect of the GUI description is that it is platform neutral. The algorithm provider describes GUI controls without knowing how an E/OMS has been implemented or knowledge of the widget toolkit that it uses. The controls provided by FIXatdl® are those typically found in .Net, Java or Web environments. (The initial intention was to adopt a standard such as XAML or XUL. However, it was believed that this would put an excessive constraint on the E/OMS vendors. So a conscious decision was made not to adopt any one of these languages. Instead FIXatdl® presents its own with the understanding that a vendor may extend or transform it to be aligned with their architecture and internal data structures.)

Most Controls are associated with a particular Parameter. This is done via the Control attribute, parameterRef. However some controls may not have an associated Parameter. These controls are typically defined in order to affect the state of other controls via the use of a StateRule element.

The following listing describes four parameters and the layout of their four associated controls. If we examine the code we’ll notice that the controls are enclosed in two StrategyPanel elements, one entitled “Time Parameters” and the other entitled “Advanced”. These two panels are nested horizontally into the top-level StrategyPanel element of the StrategyLayout element.

<Parameter name="StartTime" xsi:type="UTCTimestamp_t" fixTag="28005" use="required"/>
<Parameter name="EndTime" xsi:type="UTCTimestamp_t" fixTag="28006" use="required"/>
<Parameter name="ParticipationRate" xsi:type="Float_t" fixTag="28007" use="optional"/>
<Parameter name="Aggression" xsi:type="Char_t" fixTag="28001" use="required">
    <EnumPair enumID="e_low" wireValue="L"/>
    <EnumPair enumID="e_med" wireValue="M"/>
    <EnumPair enumID="e_high" wireValue="H"/>
</Parameter>
<StrategyLayout>
    <StrategyPanel orientation="HORIZONTAL">
        <StrategyPanel title="Time Parameters" orientation="VERTICAL">
            <Control ID="c_ST" xsi:type="Clock_t" label="Start Time" parameterRef="StartTime"/>
            <Control ID="c_ET" xsi:type="Clock_t" label="End Time" parameterRef="EndTime"/>
        </StrategyPanel>
        <StrategyPanel title="Advanced" orientation="VERTICAL">
            <Control ID="c_PR" xsi:type="SingleSpinner" label="Partic. Rate"
              parameterRef="ParticipationRate"/>
            <Control ID="c_A" xsi:type="DropDownList_t" label="Aggression"
              parameterRef="Aggression">
                <ListItem enumID="e_low" uiRep="Low"/>
                <ListItem enumID="e_med" uiRep="Medium"/>
                <ListItem enumID="e_high" uiRep="High"/>
            </Control>
        </StrategyPanel>
    </StrategyPanel>
</StrategyLayout>

Notice how the Parameter/@name attributes match with the Control/@parameterRef attributes. This creates the binding between parameters and controls. Also note how the EnumPair/@EnumID attributes match with the ListItem/@EnumID attributes. This creates the binding between the enumeration values of the parameter and the items of a drop-down list.

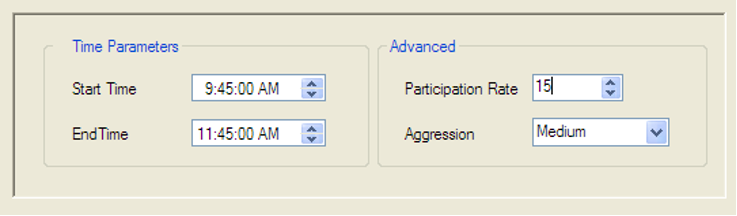

If an application were to render this information on an order ticket it would have to decide which GUI controls to instantiate and find a way to insert them into panels and lay the panels out according to the instructions of the XML. Different platforms will have different controls and panels available for this purpose and the application built on these platforms will have different appearances. So, a rendering of the controls described in the previous listing may look similar to the following image:

GUI Layout Example

Enable/Disable Clock Controls

Clock controls are the GUI component rendered in an OMS/EMS that allows a user to enter a time of day value. For example, the most common parameters to an algorithmic order, “Start Time” and “End Time” will be rendered via a clock control. A common use case involving a clock control is one where the user enters an order without specifying a time in the control, thus keeping a value from going out over the wire in the order message. The receiving broker in this case will apply a default value or default behavior based on the non-presence of this field. To do this, two helper controls are used. They are either check boxes or radio buttons and affect the value of the Clock control by use of a StateRule element.

For example:

<lay:StrategyPanel orientation="VERTICAL" title="Start Time">
    <lay:StrategyPanel orientation="HORIZONTAL">
          <lay:Control ID="c_NoStartTime" xsi:type="lay:RadioButton_t"
                        label="Now" initValue="true" radioGroup="StartTimeRB">
          </lay:Control>
    </lay:StrategyPanel>
    <lay:StrategyPanel orientation="HORIZONTAL">
        <lay:Control ID="c_EnableStartTime" xsi:type="lay:RadioButton_t" label=""
                      radioGroup="StartTimeRB">
          </lay:Control>
          <lay:Control ID="StartTimeClock" xsi:type="lay:Clock_t" label=""
                        parameterRef="StartTime">
                <flow:StateRule enabled="false" value="{NULL}">
                       <val:Edit field="c_EnableStartTime" operator="EQ" value="false"/>
                </flow:StateRule>
          </lay:Control>
    </lay:StrategyPanel>
</lay:StrategyPanel>

Here is how it might be rendered:

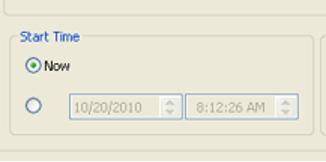

Clock Control Example 1

The value of the Clock control depends on which radio button is selected. If the first is selected, then the state rule defined within the Clock control will set the value of the Clock to null. If the Control is null, then the Parameter bound to the Control is null, and the parameter / FIX Tag is not populated when the order message goes out on the wire. If the second button is selected, then the value of the parameter that goes out on the wire is taken directly from the value the user entered.

The same can be done using a dropdown (combo box) with two items instead:

<lay:StrategyPanel orientation="VERTICAL" title="Start Time">
    <lay:StrategyPanel orientation="HORIZONTAL">
         <lay:Control ID="c_StartTimeOption" xsi:type="lay:DropDownList_t" label="">
               <lay:ListItem enumID="e_now" uiRep="Now"/>
               <lay:ListItem enumID="e_custom" uiRep="Custom"/>
         </lay:Control>
    </lay:StrategyPanel>
    <lay:StrategyPanel orientation="HORIZONTAL">
          <lay:Control ID="c_StartTimeClock" xsi:type="lay:Clock_t" label=""
                        parameterRef="StartTime">
                <flow:StateRule enabled="false" value="{NULL}">
                       <val:Edit field="c_StartTimeOption" operator="EQ" value="e_now"/>
                </flow:StateRule>
          </lay:Control>
    </lay:StrategyPanel>
</lay:StrategyPanel>

Rendering the following:

Clock Control Example 2

Here the “Custom” item has been selected from the dropdown list. If the user had selected “Now” then the time below the dropdown would be greyed out.

The following set of Clock control attributes allows this behavior to be supported without the need of helper controls or state rules. To do so, an OMS would need to implement a compound GUI control (a GUI control with at least two underlying controls: a datetime picker and a check box / radio button). To achieve this goal, the attributes “enablingControlType”, “disablingControlType”, and “disablingControlText” are available for the Clock control.

Using these attributes, the previous FIXatdl® sample could be written as follows:

<lay:StrategyPanel orientation="VERTICAL" title="Start Time">
    <lay:Control ID="StartTimeClock" xsi:type="lay:Clock_t" label=""
                  disablingControlType="RadioButton"
                  disablingControlLabel="Now"
                  enablingControlType="RadionButton"
                  parameterRef="StartTime">
    </lay:Control>
</lay:StrategyPanel>

The rendering would remain as before:

Clock Control Example 1

If an explicit GUI control used to disable user input is not desired, then the “disablingControlType” attribute can be omitted:

<lay:StrategyPanel orientation="VERTICAL" title="Start Time">
    <lay:Control ID="StartTimeClock" xsi:type="lay:Clock_t" label=""
                  enablingControlType="RadionButton"
                  parameterRef="StartTime">
    </lay:Control>
</lay:StrategyPanel>

An OMS may choose to render this clock control as follows:

Clock Control Example 3

As with previous examples, if the radio button is selected then the value that goes on the wire is derived from what the user had entered. If the radio button is not selected, then no value goes on the wire.

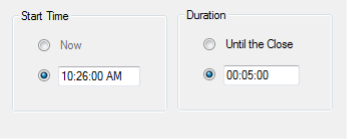

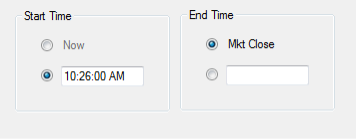

Duration as an Alternative to Expiration Time

While it is the best practice to receive the effective time of an order through use of FIX fields EffectiveTime(168) and ExpireTime(126), some algorithm providers employ a user-defined tag to receive a duration rather than an expiration time. The following example shows the layout of GUI controls that will collect a start time and end time:

<StrategyPanel orientation="HORIZONTAL">
    <StrategyPanel orientation="VERTICAL" title="Start Time">
        <StrategyPanel orientation="HORIZONTAL">
               <Control ID="c_NoStartTime" xsi:type="RadioButton_t"
                      label="Now" initValue="true" radioGroup="StartTimeRB">
               </Control>
        </StrategyPanel>
        <StrategyPanel orientation="HORIZONTAL">
              <Control ID="c_EnableStartTime" xsi:type="RadioButton_t" label=""
                     radioGroup="StartTinmeRB">
              </Control>
              <Control ID="StartTimeClock" xsi:type="Clock_t" label=""
                     parameterRef="StartTime">
                    <flow:StateRule enabled="false" value="{NULL}">
                           <val:Edit field="c_EnableStartTime" operator="EQ" value="false"/>
                    </flow:StateRule>
              </Control>
        </StrategyPanel>
    </StrategyPanel>
    <StrategyPanel orientation="VERTICAL" title="End Time">
        <StrategyPanel orientation="HORIZONTAL">
              <Control ID="c_NoEndTime" xsi:type="RadioButton_t"
                     label="Mkt Close" initValue="true" radioGroup="EndTimeRB">
              </Control>
        </StrategyPanel>
        <StrategyPanel orientation="HORIZONTAL">
              <Control ID="c_EnableEndTime" xsi:type="RadioButton_t" label=""
                     radioGroup="EndTimeRB">
              </Control>
              <Control ID="EndTimeClock" xsi:type="Clock_t" label=""
                     parameterRef="EndTime">
                    <flow:StateRule enabled="false" value="{NULL}">
                          <val:Edit field="c_EnableEndTime" operator="EQ" value="false"/>
                    </flow:StateRule>
              </Control>
        </StrategyPanel>
    </StrategyPanel>
</StrategyPanel>

Rendering:

Duration Example 1

A Duration control represents a time span rather than a point in time. Replacing the EndTime control in the previous example with a Duration control results in:

<StrategyPanel orientation="HORIZONTAL">
    <StrategyPanel orientation="VERTICAL" title="Start Time">
        <StrategyPanel orientation="HORIZONTAL">
              <Control ID="c_NoStartTime" xsi:type="RadioButton_t"
                     label="Now" initValue="true" radioGroup="StartTimeRB">
              </Control>
        </StrategyPanel>
        <StrategyPanel orientation="HORIZONTAL">
              <Control ID="c_EnableStartTime" xsi:type="RadioButton_t" label=""
                     radioGroup="StartTinmeRB">
              </Control>
              <Control ID="StartTimeClock" xsi:type="Clock_t" label=""
                     parameterRef="StartTime">
                    <flow:StateRule enabled="false" value="{NULL}">
                          <val:Edit field="c_EnableStartTime" operator="EQ" value="false"/>
                    </flow:StateRule>
              </Control>
        </StrategyPanel>
    </StrategyPanel>
    <StrategyPanel orientation="VERTICAL" title="Duration">
        <StrategyPanel orientation="HORIZONTAL">
              <Control ID="c_NoDuration" xsi:type="RadioButton_t"
                     label="Until the close" initValue="true" radioGroup="DurationRB">
             </Control>
        </StrategyPanel>
        <StrategyPanel orientation="HORIZONTAL">
              <Control ID="c_EnableDuration" xsi:type="RadioButton_t" label=""
                     radioGroup="DurationRB">
              </Control>
              <Control ID="c_Duration" xsi:type="Duration_t" label="" parameterRef="Duration">
                <flow:StateRule enabled="false" value="{NULL}">
                          <val:Edit field="c_EnableDuration" operator="EQ" value="false"/>
                    </flow:StateRule>
              </Control>
        </StrategyPanel>
    </StrategyPanel>
</StrategyPanel>

Rendering:

Duration Example 2

The parameter “Duration” can be defined as a UTCTimeOnly field, as in the following statement:

<parameter name="Duration" xsi:type="UTCTimeOnly_t" fixTag="29003" uiRep="Duration" use="optional"/>

It will be the responsibility of the OMS to correctly populate the Duration parameter on the wire (an integer or a time-related type) from the value returned by the Duration GUI control.

Grid Layout for Strategy Panels

To better support the ability of FIXatdl® to describe how GUI controls should be oriented when presented to an OMS user, a feature is available that allows controls to be arranged in grid. Specifically, the value of “GRID” is available for the type “PanelOrientation_t”. The XML schema definition is now:

<xs:simpleType name="PanelOrientation_t">
      <xs:restriction base="xs:string">
            <xs:enumeration value="HORIZONTAL"/>
            <xs:enumeration value="VERTICAL"/>
            <xs:enumeration value="GRID"/>
      </xs:restriction>
</xs:simpleType>

As before, StrategyPanel elements define their orientation by setting their orientation attribute to one of these values which can now include “GRID”. For example:

<StrategyPanel orientation="GRID">

This allows for all the elements contained in the panel, whether they are controls or other panels, to be arranged by rows and columns. Any item contained within a grid may declare a row, column, row span or column span value to explicitly guide its placement in the grid. However, explicitly declaring the placement of an item in the grid is optional. If row and column values are not provided, then the items are expected to be arranged in row-major or column-major order. The attribute “fillOrder” indicates which to use. If row or column span values are not provided, then the item is assumed to take up one row or column.

The attributes “row”, “col”, rowSpan“, and”colSpan” may be specified in any Control or StrategyPanel elements which are child elements of a grid-oriented StrategyPanel element. The attributes “numRows”, “numCols”, and “fillOrder” may be specified in any grid-oriented StrategyPanel element.

In the following three code samples a panel is created with two rows and two columns. The rendering from each sample is identical. In the first, the controls, which are contained within the panel, each explicitly declare a row and column number.

<lay:StrategyPanel orientation="GRID" numRows="2" numCols="2">
    <lay:Control ID="control1" label="control1" row="0" col="0"/>
    <lay:Control ID="control2" label="control2" row="1" col="0"/>
    <lay:Control ID="control3" label="control3" row="0" col="1"/>
    <lay:Control ID="control4" label="control4" row="1" col="1"/>
</lay:StrategyPanel>

Next, the StrategyPanel attributes numRows and numCols are left out. One can still determine how to render the controls based on the attributes “row” and “col” of each Control element.

<lay:StrategyPanel orientation="GRID">
    <lay:Control ID="control1" label="control1" row="0" col="0"/>
    <lay:Control ID="control2" label="control2" row="1" col="0"/>
    <lay:Control ID="control3" label="control3" row="0" col="1"/>
    <lay:Control ID="control4" label="control4" row="1" col="1"/>
</lay:StrategyPanel>

Finally, an implicit declaration of each item’s placement is supported by not specifying their row and column attributes. Given the number of rows and columns and the fill order, the arrangement of the controls is easily determined.

<lay:StrategyPanel orientation="GRID" numRows="2" numCols="2" fillOrder="COL-MAJOR">
    <lay:Control ID="control1" label="control1"/>
    <lay:Control ID="control2" label="control2"/>
    <lay:Control ID="control3" label="control3"/>
    <lay:Control ID="control4" label="control4"/>
</lay:StrategyPanel>

Each of the previous three samples will result in the same arrangement of the GUI controls:

GUI Controls Example 1

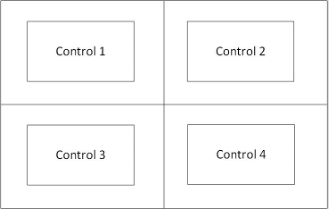

Note that when switching from column-major to row-major order, as in

<lay:StrategyPanel orientation="GRID" numRows="2" numCols="2" fillOrder="ROW-MAJOR">

the controls are rendered as follows:

GUI Controls Example 2

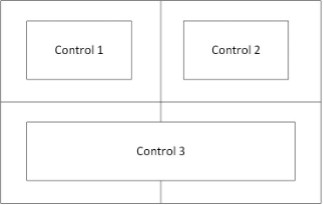

When it makes sense for a control (or panel) to span multiple columns or rows, the “colSpan” and “rowSpan” attributes can be used. They provide the same functionality as “merge cell” in spreadsheet programs like Excel. The value of either attribute must be a positive integer and specifies the number of columns or rows that the control (or panel) fills. For example,

<lay:StrategyPanel orientation="GRID" numRows="2" numCols="2" fillOrder="ROW-MAJOR">
    <lay:Control ID="control1" label="control1"/>
    <lay:Control ID="control2" label="control2"/>
    <lay:Control ID="control3" label="control3" colSpan="2"/>
</lay:StrategyPanel>

will render the following:

GUI Controls Example 3

Error Conditions

Since the attributes “row”, “col”, “numRows”, “numCols”, “rowSpan”, and “colSpan” are optional, their use may be prone to error. One must be rather careful not to define their values in such a way as to make their arrangement ambiguous or to be in conflict. With that in mind, guidance is provided for the following error conditions:

ErrorScenarioResolution
Row/column conflicts.Two or more items in a grid specify the same row and column values.Ignore all “row”/“col” attributes of all grid items and render as if they had not been specified.
Row or column values are out-of-range.The “numRows” and “numCols” attributes of a StrategyPanel element are defined as N and M, but a child control’s “row” attribute b is >= N or its “col” attribute is >= M.Override the “numRows” or “numCols” attribute of the StrategyPanel element with a value large enough to accommodate the child control’s “row” or “col” attribute.
Mismatch in parent-child orientation.Grid attributes are defined on a control whose parent is not a grid.The grid attributes of the control are ignored.

This list is not definitive and is expected to grow as issues are raised and identified by those implementing FIXatdl®.

Flow Control Rules

Interdependencies among standard FIX tags affecting their applicability are quite common. For example, Price(44) is not applicable when OrdType(40) is set to “Market”. The same can be said for algorithmic order types and their parameters. Many algorithmic order types will have parameters whose applicability is dependent on the value of one or more other parameters. These rules are often listed in algorithmic order specifications in the comments column of tables that describe the parameters of the algorithm.

In order to standardize the way these rules are described, a sub-schema is provided, which contains elements and attributes used to define rules that can be applied to the visual state of GUI Controls. This capability is a means to direct the user’s workflow and this is why it has been called “flow control”. When creating flow-control rules the expectations are that they are evaluated every time a Control’s value has changed. Based on the outcome of the evaluations, certain GUI controls may become grayed-out or hidden as the user enters values into text fields or selects items from drop-down lists.

Flow-control rules can be described via the StateRule element. A StateRule element will consist of a Boolean expression and an action to take when the Boolean expression is true. There are three actions that are supported: (1) change the “enabled” state of a control to either “true” or “false”; (2) change the “visible” state of a control to either “true” or “false”; and (3) change the current value of the control to a supplied value. (Supplied values may be a constant string value, an enumID, or the special token {NULL}.)

As with validation rules, flow-control rules employ the Edit element to describe the condition (or Boolean expression). However, when an Edit element is used in a Flow-control rule, it will not make comparisons of parameter values; rather it will compare the values returned by the controls. For example, the attributes Edit/@field and Edit/@field2 will refer to either control values or constant values.

Another difference between validation rules and flow-control rules is that the action of a flow-control rule is performed when the condition it describes is true. This differs from validation rules, where the action of “raising an error” occurs when the condition is false.

To illustrate the description of a Flow-control rule consider the following code snippet. (Note how the Control/@ID attribute value “c_AlphaMode” matches the Edit/@field attribute value “c_AlphaMode” and how the “enumID” attribute value “e_Custom” matches the “value” attribute value “e_Custom”):

<Parameter name="AlphaMode" xsi:type="Int_t" fixTag="28300" use="required">
    <EnumPair enumID="e_Annual" wireValue="1"/>
    <EnumPair enumID="e_Daily" wireValue="2"/>
    <EnumPair enumID="e_Custom" wireValue="3"/>
</Parameter>
<Parameter name="CustomValue" xsi:type="Float_t" fixTag="28301" use="optional"/>
<StrategyLayout>
    <StrategyPanel orientation="HORIZONTAL">
        <Control ID="c_AlphaMode" xsi:type="DropDownList" label="Alpha Benchmark"
                 parameterRef="AlphaMode">
            <ListItem enumID="e_Annual" uiRep="Annual"/>
            <ListItem enumID="e_Daily" uiRep="Daily"/>
            <ListItem enumID="e_Custom" uiRep="Custom"/>
        </Control>
        <Control ID="c_CustomValue" xsi:type="SingleSpinner_t" label="Custom Alpha"
                 parameterRef="CustomValue">
            <StateRule enabled="true">
                <Edit field="c_AlphaMode" operator="EQ" value="e_Custom"/>
            </StateRule>
            <StateRule value="{NULL}">
                <Edit field="c_AlphaMode" operator="NE" value="e_Custom"/>
            </StateRule>
        </Control>
    </StrategyPanel>
</StrategyLayout>

Two parameters are defined in this listing, “AlphaMode” and “CustomValue”. Also two controls corresponding to the parameters are defined. A rule has been supplied to the control identified by “c_CustomValue” governing its visual behavior. The rule should be interpreted as: “The control c_CustomValue is enabled only when the value of control c_AlphaMode has been set to”Custom“. So a user who selects”Annual” or “Daily” would not able to enter a custom Alpha value. Only when “Custom” is selected from the dropdown list would the custom Alpha control be able to accept values entered by the user.

While StateRules are explicit in defining the changes to a control when the condition, described by its Edit element, makes the transition from being false to being true, it is not clear what changes to make when the condition becomes false again (or is initially false). So, to clarify the behavior of the controls, the following conventions are applied:

  1. A StateRule element that changes the “enabled” property of a control to X when its condition becomes true, will implicitly cause the “enabled” property of the control to change to NOT(X) when its condition becomes false, where X is Boolean. (The “enabled” property simply controls whether or not the value within the control can be changed (is read-only) and is not a determining factor in whether or not the control’s value is to be included in the message transmitted over the wire.)
  2. A StateRule element that changes the “visible” property of a control to X when its condition becomes true, will implicitly cause the “visible” property of the control to change to NOT(X) when its condition becomes false, where X is Boolean.
  3. A StateRule element that changes the value of a control when its condition becomes true will cause no action to take place when its condition becomes false. Provided the vale expressed in the StateRule element is not the special token “{NULL}”.
  4. A StateRule element that changes the value of a control to “{NULL}” when its condition becomes true will cause the control’s value to revert back to its previous non-{NULL} value or its initial value.

Note that due to point 4 above, when a StateRule element condition becomes false it may cause the control to become un-initialized. When this occurs the control will have no value. Should a NewOrderSingle(35=D), OrderCancelRequest(35=F) or OrderCancelReplaceRequest(35=G) message be generated while the control is in this condition, the associated parameter will not be included in that message.

Also note that the state of a control’s enabled property or visible property does not influence whether the control’s associated parameter is sent on the wire or not. This behavior is governed entirely by the control’s value. To clarify this, one must adhere to another convention:

  1. To the extent that a control’s value determines the “wire-value” of a particular parameter, if the control is un-initialized or has been set to the value of “{NULL}” then the associated parameter will not have a “wire-value” and will not have its tag-value pair included in a NewOrderSingle(35=D), OrderCancelRequest(35=F) or OrderCancelReplaceRequest(35=G) message.

In other words, if a user enters a value into a control and subsequently the control becomes disabled then the value that was entered would cause a tag to be populated in the generated FIX message and the value would go out over the wire. This is why, in the previous listing, a second StateRule element was required:

<StateRule value="{NULL}">
    <Edit field="c_AlphaMode" operator="NE" value="e_Custom"/>
</StateRule>

If this rule had not been provided, a “CustomValue” parameter (tag 28301) would be transmitted on the wire if the user had entered a value into the spinner and then selected “Daily” or “Annual” from the drop-down list.

Parameter-to-Control Bindings

In order for an E/OMS to generate an order message it must iterate through all the parameters, find the associated controls, retrieve the control values and determine appropriate values with which to populate the custom FIX tags of the order message. In order for this to be accomplished FIXatdl® provides a means for relating controls to parameters, mainly, the parameterRef attribute of the Control element. This attribute is set to the value of a Parameter element’s name attribute, thus providing a binding between the two.

Bindings of controls to parameters may be either one-to-one, where one control is bound to one parameter, or many-to-one, where multiple controls are bound to one parameter. (The only cases of many-to-one bindings involve groups of radio buttons. All other bindings are one-to-one.)

When a binding of a control to a parameter is declared it must be possible for the control’s value to be converted to a legal wire-value of the control. For example, it makes little sense for a checkbox control to be bound to a floating point parameter. Rather, a checkbox is more logically fit to be bound to a Boolean parameter.

Not all parameters need an associated control. Some parameters are intended to act as constants and have no GUI control representation. The FIX tags of the parameters are expected to be populated with the same value in every order message regardless of the values of other parameters. When this is the case, an attribute of the Parameter element, constValue, is used to indicate that the parameter is a constant and provides the value, as in the following listing.

<Parameter name="ExecService" xsi:type="Char_t" fixTag="29050" constValue="A"/>

Based on this description of “ExecService” the order recipient would expect to receive a FIX message containing the substring “29050=A”.

Conversely, it is also the case that not all control need to be bound to a parameter. Controls with no declared parameterRef attribute are considered helper controls. They are used to manage the state of other controls via the use of flow-control rules. For example, the following listing describes two controls – a helper control and a control bound to some integer parameter named “CrossQty”.

<Control ID="EnableCross" xsi:type="CheckBox_t" label="Enable Cross" initValue="false">
<Control ID="CrossQty" xsi:type="SingleSpinner_t" label="Cross Qty" parameterRef="CrossQty">
    <StateRule enable="true">
        <Edit field="EnableCross" operator="EQ" value="true"/>
    </StateRule>
</Control>

For a strategy rendered from this description, the user would not be able to enter a value into the “CrossQty” spinner control unless the “EnableCross” checkbox is checked.

Transport of Strategy Parameters

The FIX Protocol allows algorithmic order parameters to be transported between parties either by use of the StrategyParametersGrp repeating group or by use of user-defined tags mutually agreed upon by the order originator and order recipient. FIXatdl® provides a means for the order recipient to inform the order originator which of these methods to use.

An algorithmic order provider indicates that it can receive parameters through the StrategyParametersGrp component (tags 957-960) by setting the attribute of the Strategies element, tag957Support, to true. The recipient can also indicate that it is able to receive parameters via user-defined tags by proving values for the fixTag attributes of each Parameter element. An algorithmic order provider may support both transport methods.

To illustrate, consider the following listing:

<Strategies strategyIdentifierTag="27000" versionIdentifierTag="27001" tag957Support="true">
    <Strategy name="POV" uiRep="POV" wireValue="v" version="1" fixMsgType="D">
        <Parameter name="PctVol" xsi:type="Percentage_t" fixTag="27002" use="required"/>
        <Parameter name="FC" xsi:type="Boolean_t" fixTag="27003" use="required"/>
        <StrategyLayout>
            <StrategyPanel>
                <Control ID="c_PctVol" xsi:type="SingleSpinner_t" label="Pct of Volume"
                         parameterRef="PctVol"/>
                <Control ID="c_FC" xsi:type="CheckBox_t" label="Force Completion"
                         parameterRef="FC"/>
            </StrategyPanel>
        </StrategyLayout>
    </Strategy>
</Strategies>

This document instance describes an algorithm with two parameters, PctVol and ForceCompletion. The algorithm provider has also indicated that it supports receipt of these parameters via StrategyParametersGrp and via the UDFs 27002 and 27003. So an E/OMS would be free to choose between the two methods when it transmits the parameters. If this were to be rendered by an E/OMS and a user was to enter a “PctVol” value of 0.15 and check the Force Completion checkbox, then the order generated may contain a substring similar to:

... 35=D|11=1234|55=AXP|... |27000=v|27001=1|957=2|958=PctVol|959=11|960=0.15|958=FC|959=13|960=Y

In this case the E/OMS has decided to use the StrategyParametersGrp repeating group. If the tag957Support attribute were set to false then the E/OMS would be forced to use the UDFs, 27002 and 27003, as in:

... 35=D|11=1234|55=AXP|... |27000=v|27001=1|27002=0.15|27003=Y

The general rule for determining which method to use is as follows.

tag957SupportfixTag attributes providedMethod for transmitting parameters
truenoStrategyParametersGrp
trueyesStrategyParametersGrp or UDFs (but never both)
falseyesUDFs
falseno(Not allowed – at least one method must be specified)

Support for Basket, List and Multileg Order Types

FIXatdl® provides robust support for multileg order types and clarify how their interfaces are described. In doing so, the following concepts were considered.

Order Delivery

Any algorithm provider must inform its clients, or its clients’ OMSs, which method(s) to use so the order can be delivered as expected. There are three acceptable methods used to deliver multileg orders to an execution venue:

  • Multiple NewOrderSingle(35=D) messages – one for each leg, where an additional identifier is used to associate the individual legs with one another.
  • A single NewOrderMultiLeg(35=AB) message – information about individual legs are placed into the repeating group LegOrdGrp.
  • A single NewOrderList(35=E) message – information about individual legs are placed into the repeating group ListOrdGrp. Note that it may also be possible to partition the legs into several NewOrderList(35=E) messages provided they share the same values for ListID(66) and TotNoOrders(68).

The most common method in use today is to issue multiple NewOrderSingle(35=D) messages; one for each leg or each order in a basket.

Leg Count

The description of the order interface must include a number representing the required number of legs for the strategy. An OMS should use this information to render a fixed number of GUI controls where values for the leg parameters can be entered. For example, a pairs strategy would require two legs; with this information, an OMS should render two sets of GUI controls which are associated with the fields of the legs. A value of “unbounded” must be allowed in order to support the delivery of a variable number of legs such as in the case of a basket/portfolio strategy. The attributes “minLegs” and “maxLegs” are provided for this purpose.

The following examples show the description of a strategy which requires exactly two legs, followed by a strategy which requires one or more legs.

<Strategy name="two-legged-order"
    ...
    minLegs="2" maxLegs="2">
    ...
</Strategy>

<Strategy name="one-or-more-legged-order"
    ...
    minLegs="1" maxLegs="unbounded">
    ...
</Strategy>

Linking and Sequencing of Single Orders

When accepting multileg orders via a group of NewOrderSingle(35=D) messages, the orders need to be linked. FIXatdl® supports the definition of a FIX tag number in which the OMS will place a unique ID (or “Global” Order ID) in each of the messages, the definition of a tag number in which the OMS will place a leg sequence number, and the definition of a tag number in which the OMS will place the total number of legs of the order. The attributes “commonIDTag”, “legSequenceTag”, and “totalLegsTag” are provided for this purpose.

For example, the following strategy requires that linking and sequencing data is to be populated in the user-defined tags 27066, 27067 and 27068.

<Strategy
    ...
    commonIDTag="27066"
    legSequenceTag="27067"
    totalLegsTag="27068">
    ...
</Strategy>

Note that the semantics of these attributes are analogous to ListID(66), ListSeqNum(67) and TotNoOrders(68) in a NewOrderList(35=E) message. However, use of these values should be avoided as the associated fields are not members of the NewOrderSingle(35) message. Instead, broker/dealers should use UDFs.

Parameter Scope

Algorithmic order parameters can either apply to the entire order or to the legs of the order. In the description of a parameter, the scope must be clear; at the order level or at the leg level. To represent this, the leg parameters are wrapped in a the Leg element.

For example:

<Parameter name="p_OrdParamA" xsi:type="Int_t" fixTag="25000"/>
<Parameter name="p_OrdParamB" xsi:type="Int_t" fixTag="25001"/>
<Leg>
  <Parameter name="p_LegParamA" xsi:type="Int_t" fixTag="26001"/>
  <Parameter name="p_LegParamB" xsi:type="Int_t" fixTag="26002"/>
</Leg>

Here there are two strategy parameters; both of which will be included in each leg of the order.

Cancel/Modify of Legs

When the delivery option being used is the NewOrderSingle(35=D) message then the OMS must know how to handle cancellation and modification of the order. The description of the strategy must indicate whether an individual leg can be cancelled or modified and, if so, whether it is necessary to re-send all the legs that were not modified. The attribute Strategy/@legsAreSeverable is provided for this purpose.

Validation of Leg Parameter Values

The validation rules allow references to parameter values in the evaluation of its Boolean expression. For multileg orders, the values of leg parameters need to be supported in the validation rules. This is provided with an additional attribute Edit/@legNo to indicate a leg number.

The following example shows a rule for validating a Pairs trade, confirming, without knowing the sequence of the legs, that one leg is a Buy and the other is a Sell.

<val:StrategyEdit errorMessage="One leg must be a BUY, the other a SELL">
    <val:Edit logicOperator="OR">
        <val:Edit logicOperator="AND">
            <val:Edit field="FIX_Side" legNo="1" operator="EQ" field2="1"/>
            <val:Edit logicOperator="OR">
                <val:Edit field="FIX_Side" legNo="2" operator="EQ" field2="2"/>
                <val:Edit field="FIX_Side" legNo="2" operator="EQ" field2="5"/>
            </val:Edit>
        </val:Edit>
        <val:Edit logicOperator="AND">
            <val:Edit field="FIX_Side" legNo="2" operator="EQ" field2="1"/>
            <val:Edit logicOperator="OR">
                <val:Edit field="FIX_Side" legNo="1" operator="EQ" field2="2"/>
                <val:Edit field="FIX_Side" legNo="1" operator="EQ" field2="5"/>
            </val:Edit>
        </val:Edit>
    </val:Edit>
</val:StrategyEdit>

Display/Layout of Leg Parameters

For single-leg order definitions there are certain standard fields that should not be included in the Parameter or Controls declarations. These include: Symbol(55), Side(54), OrderQty(38), OrdType(40), Price(44) and StopPrice(99). OMSs tend to handle these separately from strategy parameters and display them regardless of whether they are declared in the FIXatdl® code, or rather, if they are declared in FIXatdl®, they are somehow ignored, or some special processing is involved.

Extending this model to multileg orders, there are certain standard fields that should not be included in the leg definitions, yet it can be assumed that they will be presented to the user. If an order requires N legs, then these standard fields will be presented in all N legs. So, in effect, if a single order entry screen is segregated into a standard section and a custom parameter section, then a multileg order entry screen is segregated into N+1 sections: a global custom parameter section and N leg sections where each leg section contains a standard section and a custom parameter section.

FIXatdl® supports a panel to hold all leg-level controls. It needs to be declared just once with the expectation that it will be repeated as many times as necessary according to the value of the attribute “requiredNumberOfLegs”. The LegPanel element is provided for this purpose.

Example:

<StrategyLayout>
    <StrategyPanel collapsible="false" orientation="VERTICAL">
        <Control ID="c_OrdParam1" label="Ord Param A" parameterRef="p_OrdParamA"
                 xsi:type="SingleSpinner_t"/>
        <Control ID="c_OrdParam2" label="Ord Param B" parameterRef="p_OrdParamB"
                 xsi:type="SingleSpinner_t"/>
    </StrategyPanel>
    <LegPanel collapsible="false" orientation="VERTICAL">
        <Control ID="c_LegParamA" label="Leg Param A" parameterRef="p_LegParamA"
                 xsi:type="SingleSpinner_t"/>
        <Control ID="c_LegParamB" label="Leg Param B" parameterRef="p_LegParamB"
                 xsi:type="SingleSpinner_t"/>
    </LegPanel>
</StrategyLayout>

GUI State Rule for Leg Panel Controls

GUI Controls contained within a leg panel can have their states and values change just like Controls found in a regular strategy panel. However, controls that are referenced by a state rule of another control are assumed to be in the same scope as the referring control. For example, in the following listing, the second GUI control is disabled and given a null value if the first control (checkbox) is checked.

<lay:LegPanel collapsible="false" orientation="VERTICAL">
    <lay:Control ID="c_LegParamA" label="Leg Param A" parameterRef="p_LegParamA"
                 xsi:type="lay:Checkbox_t"/>
    <lay:Control ID="c_LegParamB" label="Leg Param B" parameterRef="p_LegParamB"
                 xsi:type="lay:SingleSpinner_t">
        <StateRule enabled="false" value="{NULL}">
            <Edit field="c_LegParamA" operator="EQ" value="True"/>
        </StateRule>
    </lay:Control>
</lay:LegPanel>

If there are several legs, then this state rule will be enforced in each leg panel. The behavior of the state rules in each leg panel is independent of the others.

Vendor Configurations

Different GUI layouts can be defined based on set types of vendor configurations or service levels. For an implementation of this feature, an XML element defined at the Strategy level is used. It allows filtering of strategies to be performed much in the same way as the Regions element does. (As of now the only configuration level identified is whether an OMS allows leg parameters. Some do not.)

The following two examples show the description of a two-legged order strategy. In the first, it is expected that the vendor’s system supports leg parameters, i.e. leg parameters may take different values from leg to leg. In the second, it is expected that the vendor’s system does not support leg parameters having different values from leg to leg; effectively disallowing their use. Populating the message with the necessary information requires that all leg parameters are repeated with the same value in each leg.

<Strategy
    ...
    minLegs="2"
    maxLegs="2"
    ...
    >
    <VendorConfig legParameters="true"/>
    <DeliveryMethods>
      <FixMsg msgType="NewOrderSingle"/>
      <FixMsg msgType="NewOrderMultiLeg"/>
    </DeliveryMethods>
    <Parameter name="p_OrdParamA" xsi:type="Int_t" fixTag="25000"/>
    <Parameter name="p_OrdParamB" xsi:type="Int_t" fixTag="25001"/>
    <Leg>
        <Parameter name="p_LegParamA" xsi:type="Int_t" fixTag="26001"/>
        <Parameter name="p_LegParamB" xsi:type="Int_t" fixTag="26002"/>
    </Leg>
    <lay:StrategyLayout>
        <lay:StrategyPanel collapsible="false" orientation="VERTICAL">
            <lay:Control ID="c_OrdParam1" label="Ord Param A" parameterRef="p_OrdParamA"
                         xsi:type="lay:SingleSpinner_t"/>
            <lay:Control ID="c_OrdParam2" label="Ord Param B" parameterRef="p_OrdParamB"
                         xsi:type="lay:SingleSpinner_t"/>
        </lay:StrategyPanel>
        <lay:LegPanel collapsible="false" orientation="VERTICAL">
            <lay:Control ID="c_LegParamA" label="Leg Param A" parameterRef="p_LegParamA"
                         xsi:type="lay:SingleSpinner_t"/>
            <lay:Control ID="c_LegParamB" label="Leg Param B" parameterRef="p_LegParamB"
                         xsi:type="lay:SingleSpinner_t"/>
        </lay:LegPanel>
    </lay:StrategyLayout>
</Strategy>

<Strategy
    ...
    minLegs="2"
    maxLegs="2"
    ...
    >
    <VendorConfig legParameters="false"/>
    <DeliveryMethods>
      <FixMsg msgType="NewOrderSingle"/>
    </DeliveryMethods>
    <Parameter name="p_Ord_ParamA" xsi:type="Int_t" fixTag="25000"/>
    <Parameter name="p_Ord_ParamB" xsi:type="Int_t" fixTag="25001"/>
    <Leg>
      <Parameter name="p_Buy_Leg_ParamA" xsi:type="Int_t" fixTag="26001"/>
      <Parameter name="p_Buy_Leg_ParamB" xsi:type="Int_t" fixTag="26002"/>
      <Parameter name="p_Sell_Leg_ParamA" xsi:type="Int_t" fixTag="26003"/>
      <Parameter name="p_Sell_Leg_ParamB" xsi:type="Int_t" fixTag="26004"/>
    </Leg>
    <lay:StrategyLayout>
        <lay:StrategyPanel collapsible="false" orientation="VERTICAL">
            <lay:Control ID="c_OrdParamA" label="Ord Param A"
                         parameterRef="p_OrdParamA"
                         xsi:type="lay:SingleSpinner_t"/>
            <lay:Control ID="c_OrdParamB" label="Ord Param B"
                         parameterRef="p_OrdParamB"
                         xsi:type="lay:SingleSpinner_t"/>
            <lay:StrategyPanel orientation="HORIZONTAL">
                <lay:StrategyPanel orientation="VERTICAL">
                    <lay:Control ID="c_BuyLegParamA" label="Buy Leg Param A"
                                 parameterRef="p_Buy_Leg_ParamA"
                                 xsi:type="lay:SingleSpinner_t"/>
                    <lay:Control ID="c_BuyLegParamB" label="Buy Leg Param B"
                                 parameterRef="p_Buy_Leg_ParamB"
                                 xsi:type="lay:SingleSpinner_t"/>
                </lay:StrategyPanel>
                <lay:StrategyPanel orientation="VERTICAL">
                    <lay:Control ID="c_SellLegParamA" label="Sell Leg Param A"
                                 parameterRef="p_Sell_Leg_ParamA"
                                 xsi:type="lay:SingleSpinner_t"/>
                    <lay:Control ID="c_SellLegParamB" label="Sell Leg Param B"
                                 parameterRef="p_Sell_Leg_ParamB"
                                 xsi:type="lay:SingleSpinner_t"/>
                </lay:StrategyPanel>
            </lay:StrategyPanel>
        </lay:StrategyPanel>
    </lay:StrategyLayout>
</Strategy>

Note that in the latter example there is no support for delivery by the NewOrderMultiLeg(35=AB) message. The assumption being that the OMS ‘s lack of support for leg parameters is due to the way it handles its collection of NewOrderSingle(35=D) messages. It is reasonable to expect that an OMS which supports delivery by NewOrderMultiLeg(35=AB) message will also be able to support leg parameters.

Additional Global Definitions

FIXatdl® supports the global definition of Parameter, Control, StrategyPanel, Edit, StateRule and Filter elements. This allows them to be defined once and referenced within multiple Strategy elements, thus making the XML less verbose and more readable.

OMS Hooks

One of the key features of FIXatdl® is the ability to refer to OMS variables in the description of order interfaces. In effect, a FIXatdl® instance would have a “hook” into the OMS and have access to certain environment variables or order parameters not defined in the XML for use in validation rules or filtering.

Validation Rules with References to Standard FIX Fields

In the FIXatdl® specification, several references are made to standard FIX fields. For example, the specification of the Edit element (see section Validation Rules), which is used to build validation or flow rules, states the following:

The “field” attribute of an Edit element is not restricted to strategy parameters. Standard order tags (those not described in a FIXatdl® instance but nevertheless are required tags of order, cancel and cancel/replace messages) may also be used to create Boolean expressions.

For example:

<StrategyEdit errorMessage="For IOC orders Participation Rate must be between 1 and 25">
  <Edit logicOperator="OR">
       <Edit field="FIX_TimeInForce" operator="NX"/>
     <Edit field="FIX_TimeInForce" operator="NE" value="3"/>
     <Edit logicOperator="AND">
        <Edit field="ParticipationRate" operator="GE" value="1"/>
        <Edit field="ParticipationRate" operator="LE" value="25"/>
     </Edit>
   </Edit>
</StrategyEdit>

Also, the section Dependencies and Structural Constraints beyond XML Schema states the following:

Within an Edit element the attributes field and field2 must refer to either a pre-declared parameter name or a standard FIX tag name (taken from the normative FIX specification) pre-pended with the string “FIX_”.

The intention was that the OMS would make the standard FIX tags accessible and allow them to be referenced by the validation rules. For example, in single-leg order definitions it is generally understood that Standard fields (Symbol(55), Side(54), OrderQty(38), OrdType(40), Price(44), etc.) should not be included in the Parameter or Controls declarations. OMS platforms tend to handle these separately from strategy parameters and display them regardless of whether they are declared in the FIXatdl® code (or, if they are declared in FIXatdl®, they are somehow ignored, or some special processing is involved.) FIXatdl® allows these fields to be referred to from within a validation rule.

This can work for a small number of fields; and in fact, some OMS platforms support this. But not all do, and the fields they make accessible are not consistent.

FIXatdl® seeks to provide clarity concerning the use of standard fields and the fields of an order that an OMS would be expected to make available. The following table lists the fields of an order which may be referenced in a validation rule.

Field NameTag NumberComments
Symbol55
Side54
OrderQty38
OrdType40
Price44
StopPx99
TimeInForce59
HandlInst21
ExecInst18This is a MultipleCharValue type. Values are space delimited and arranged in alpha-numeric order.
SecurityType167
TargetSubID57

Filtering according to OMS Environment Values

FIXatdl® defines filtering of strategies based on regions, asset classes and markets. For example, the specification of the Regions element (see section Element Definitions) includes the following:

This element defines the globally based regions to which the strategy is applicable. It serves as a container of Region elements. To define a set of regions for a strategy, use one or more Region elements. The attribute Region/@inclusion determines whether the region is included or excluded from the set.

If no Regions element is defined, then the strategy is applicable for *ALL* regions.

Filtering, however, is restricted to strategies. Other elements of a strategy, such as parameters or controls, cannot be filtered. For example, the following strategy applies only to a specific combination of region, market, client and security type.

<Strategy name="Tazer1" uiRep="Tazer" wireValue="Tazer" providerID="ABC">
    <!-- US only -->
    <Regions>
        <Region name="TheAmericas" inclusion="Include">
            <Country CountryCode="US" inclusion="Include"/>
        </Region>
    </Regions>
    <!-- Nasdaq only -->
    <Markets>
        <Market MICCode="XNAS" inclusion="Include"/>
    </Markets>
    <!-- Equities ("CS") only -->
    <SecurityTypes>
        <SecurityType name="CS" inclusion="Include"/>
    </SecurityTypes>
    ...
</Strategy>

The filtering capability can also be applied to parameters and controls to allow strategies with a set of parameters that are applicable only to certain regions, markets or clients, to be defined in one Strategy element rather than several.

The following example describes a strategy with a parameter that is filtered by a region and an enumerated value of another parameter filtered by the same region. Note that it makes use of a global filter definition.

<Filter id="US-filter">
    <Regions>
      <Region name="TheAmericas" inclusion="Include">
        <Country CountryCode="US" inclusion="Include"/>
      </Region>
    </Regions>
</Filter>

<Strategy>
    ...
    <Parameter name="StartTime" xsi:type="UTCTimestamp_t" fixTag="27602"/>
    <Parameter name="EndTime" xsi:type="UTCTimestamp_t" fixTag="27603"/>
    <Parameter name="Text" xsi:type="String_t" fixTag="29999" use="optional"/>
    <Parameter name="Variance" xsi:type="Float_t" fixTag="27641" filter="US-filter"/>
    <Parameter name="Benchmark" xsi:type="String_t" fixTag="27666">
        <EnumPair wireValue="Arrival" enumID="e_Arrival"/>
        <EnumPair wireValue="Close" enumID="e_Close"/>
        <EnumPair wireValue="Open" enumID="e_Open"/>
        <EnumPair wireValue="SectorETF" enumID="e_SectorETF" filter="US-filter"/>
    <StrategyLayout>
    ...
        <StrategyPanel orientation="HORIZONTAL">
            <Control xsi:type="TextField_t" ID="Variance" parameterRef="Variance"
                     filter="US-filter">
            </Control>
            <Control xsi:type="DropDownList_t" parameterRef="Benchmark">
                <ListItem uiRep="Arrival" enumID="e_Arrival"/>
                <ListItem uiRep="Close" enumID="e_Close"/>
                <ListItem uiRep="Open" enumID="e_Open"/>
                <ListItem uiRep="SectorETF" enumID="e_SectorETF" filter="US-filter"/>
            </Control>
        </StrategyPanel>
    ...
    </StrategyLayout>
</Strategy>

The filtering criteria includes types of a client. More specifically, a list of client types can be defined in a ClientGroups element. For example, a broker-dealer may classify a set of its clients as high frequency traders. A client-group filter could be declared as follows:

<Filter id="US-HFT">
    <ClientGroups>
        <ClientGroup ID="HFT"/>
    </ClientGroups>
</Filter>

Element Definitions

A high-level description of the elements is provided in the following table.

Element NameParent Element(s)Description
ClientGroupClientGroupsUsed to define a client classification. For example, large traders may be identified as <Client ID="LT"/>. Out-of-band coordination may be required between an algo provider and an E/OMS vendor to define which client fall under the specified categories.
ClientGroupsFilterAn element used to build a list of ClientGroup elements. Applicable when filtering a Strategy based on the firms using the E/OMS.
ControlStrategy, StrategyPanelBase element used to define GUI controls. Specific instances of controls are defined using the XML Schema xsi:type. For example <Control xsi:type="lay:TextField_t"/>, where TextField_t is a complex type defined in the FIXatdl® Layout XML Schema.
ControlRefStrategyPanelA reference to a Control element.
CountryRegionAn element used to build a list of countries that may be included or excluded from a region. Its attribute, CountryCode, contains an ISO 3166-1 alpha-2 code.
DeliveryMethodsStrategyIndicates which FIX messages may be used to deliver orders from the order originator to the order recipient.
DescriptionParameter, EnumPair, RepeatingGroup, Strategies, StrategyText providing a description of its parent element.
EditStrategyEdit, StateRule, Strategies, StrategyBoolean expression evaluated in validation and flow control rules. An Edit element will describe a condition that is either true or false.

An Edit element is most commonly used within StrategyEdit and StateRule elements where its scope is limited to its parent element. However, when an Edit is child of a Strategy element, its scope extends the entire Strategy and can be reference by the child StateRule and StrategyEdit elements of the Strategy element. When an Edit is a child of the Strategies element, its scope extends the entire XML instance and may be referenced by any StateRule or StrategyEdit.

EditRefStrategyEdit, StateRuleChild of a StrategyEdit element used to refer to an Edit element which was declared as a child of a Strategy or as a child of Strategies.
EnumPairParameterDefines a legal value of a parameter in the form of a wire value. A Parameter element will have an EnumPair element for each enumerated value which the parameter can take.
FilterStrategies, StrategyDefines a filtering criterion to be used in conjunction with the filter attribute of Parameter, EnumPair, Control and ListItem elements. Filter elements can contain any number of Regions, Markets, SecurityTypes or ClientGroups elements.
FixMsgDeliveryMethodsDefines a type of FIX message that can be used when delivering orders.
HelpTextControlText describing the use of a particular GUI control. This element is used when information about a control is lengthy and would only be appropriate to display in a dialog box – not as a tooltip.
LegPanelStrategyLayout, StrategyPanelPanel used to display leg-level controls.
ListItemControlUsed for controls that let the user choose from a list of items. When a Control element is mapped top a Parameter element, via means of the Control element’s “parameterRef” attribute, each ListItem will contain a reference to an EnumPair defined within the Parameter element.
MarketMarketsUsed as a child element of the Markets element. Defines a particular market using a market identifier code (MIC). An attribute, inclusion, determines whether the market should be included or excluded from the list of markets created by the patterned element, Markets.
MarketsStrategyThis element defines the markets/exchanges (by ISO 10383 MIC Code) of which the strategy is applicable. If no Markets element is defined then the strategy is applicable for *ALL* markets. If a market is defined and has its ‘inclusion’ attribute set to “Include”, then it is implied that the strategy is applicable for *ONLY* that market.  If a region is defined and is set to “Exclude”, then it is implied that the strategy is applicable for all markets *EXCEPT* that market.

Include takes precedence over Exclude – for example, if XNAS is defined and set to “Include” and XLON is defined and set to “Exclude” then all other markets will also be excluded since the “Include” on XNAS takes precedence over the “Exclude” on XLON.  In this example, the definition of XLON as “Exclude” is unnecessary.

Markets are used in conjunction with regions and countries to define the scope of the strategy.  Markets take precedence over regions and countries.  For example, if AsiaPacificJapan is defined as “Exclude” but the Fukuoka Stock Exchange (XFKA) is defined as an included market, the strategy will be applicable for all markets in The Americas and EMEA, as well as only the Fukuoka Stock Exchange in the APAC region.

ParameterStrategy, RepeatingGroupElement to define the characteristics of an algo parameter with respect to the data interface with the algo provider.
RegionRegionsAn individual region used as a child element of the Regions element.
RegionsStrategyThis element defines the globally based regions to which the strategy is applicable. It serves as a container of Region elements. To define a set of regions for a strategy use one or more Region elements. Region elements contain the attribute “inclusion” that determines whether the region is included from the set or excluded.

If no Regions element is defined, then the strategy is applicable for ALL regions. If a region is defined and has its ‘inclusion’ attribute set to “Include”, then it is implied that the strategy is applicable for ONLY that region. If a region is defined and is set to “Exclude”, then it is implied that the strategy is applicable for all regions EXCEPT that region.

“Include” takes precedence over “Exclude” – for example, if “TheAmericas” is defined and set to “Include” and “EuropeMiddleEastAfrica” is defined and set to “Exclude” then “AsiaPacificJapan” will also be excluded since the “Include” on “TheAmericas” takes precedence over the “Exclude” on “EuropeMiddleEastAfrica”. In this example, the definition of “EuropeMiddleEastAfrica” as “Exclude” is unnecessary.

Regions also contain a child element called “Country” that allows the algo author to further specify the geographic scope of the strategy. Countries can be included and excluded in the same manner as regions and the same rules of precedence apply. Please see fixatdl-regions-1-2.xsd for the list of ISO 3166 Country Code to region mappings.

RepeatingGroupStrategyContainer of a group of Parameter elements that are intended for use with multileg or basket strategies.

Parameters contained within a RepeatingGroup element are intended to have their tag=value pairs populated in either the ListOrdGrp repeating group of a NewOrderList(35=E) message or the LegOrdGrp repeating group of a NewOrderMultileg(35=AB) message.

Parameters not contained within a RepeatingGroup element have their values populated in the main body of a message.

SecurityTypeSecurityTypesAn element used to describe a security type that may be included or excluded from the list built by the parent element, SecurityTypes. Its attribute, “name”, contains a FIX SecurityType(167) value.
SecurityTypesStrategyThe list of security types (by SecurityType(167)) for which the given strategy is valid. The absence of any security types implies that the strategy is valid for all security types.
StateRuleControlDefines workflow rule for a Control. Defines a workflow rule for a GUI control. Using StateRule as a child element of a Control element, rules can be defined which affect the “enabled” and “hidden” properties of the underlying Java/.Net/Web/etc. rendered on the screen.

A StateRule element must contain a child Edit element. The action defined by the StateRule is in-effect when the condition described by its child Edit element is true. The action is not in-effect when the condition described by its child Edit element is false.

Strategies[n/a]Container for all strategy elements. It is the root element of all FIXatdl® conforming documents.
StrategyStrategiesRoot level of a strategy definition.
StrategyEditStrategyDefinition of a validation rule. A StrategyEdit element must contain an Edit element as a child. The boolean expression described by the Edit element is an assertion, i.e., validation succeeds if the condition described by the Edit is true and fails when the condition described by the Edit element is false. In the case where validation fails, the error message, supplied by the errorMessage attribute of StrategyEdit, may be displayed to an OMS user or logged.
StrategyLayoutStrategyContainer for StrategyPanel elements. If declared, a StrategyLayout element must contain at least one StrategyPanel as a child element.
StrategyPanelStrategyLayout, StrategyPanelContainer for either groups of parameters or StrategyPanel elements, but not both. I.e., a StrategyPanel element will contain either all Control elements or all StrategyPanel elements.
StrategyPanelRefStrategyLayout, StrategyPanelA reference to a StrategyPanel element.
VendorConfigStrategyElement used to describe the requirements necessary for the E/OMS to support for the parent strategy to be applicable. Attributes are “legParameters” (indicating whether parameters can be included in the legs of multileg orders) and “tag66support” (requiring the E/OMS to populate ListID(66) to link together components of a multileg order).

Attribute Definitions of Elements

The following tables describe the attributes of all the FIXatdl® XML elements. The format of the attribute name is

<element name>/@<attribute> where the element is one of the XML elements defined by FIXatdl®.

Since some of the attributes are overloaded due to the way the Parameter and Control elements can be extended, types of certain attributes will depend on the type of the element. For these attributes, the conditions determining their type will be listed in their description.

Attributes that are applicable to extensions of the Parameter and Control elements have not been included in the tables. These are defined in section Abstract Element Extensions.

Client Element

AttributeTypeReq’dDescription
Client/@IDstringYUsed to define a client classification. For example, large traders may be identified as <Client ID="LT"/>.

Control Element

AttributeTypeReq’dDescription
Control/@checkedEnumRefStringIDNRefers to an enumID defined in the definition of the Parameter referred by Control/@parameterRef. This enumID is the output from this control if it is checked/selected.

(See the section A Sample FIXatdl® Document in this document for an example. Examine the Parameter “AllowDarkPoolExec” and Control “DPOption” for details.)

Applicable when xsi:type is CheckBox_t or RadioButton_t.

Control/@colnon-negative intNColumn in which this item is to appear in a grid-oriented panel.

Applicable when encompassing StrategyPanel orientation is GRID.

Control/@colSpannon-negative intNNumber of colums an item is to span in a grid-oriented panel. (Default: 1)

Applicable when encompassing StrategyPanel orientation is GRID.

Control/@disableForTemplatebooleanNFor implementing systems that support saving order templates or pre-populated orders for basket trading/list trading this attribute specifies that the control should be disabled when the order screen is going to be saved as a template and not actually used to place an order.
Control/@disablingControlTypestringNDescription of the GUI control to be rendered which directs the OMS to disable the clock (greyed-out with null value) and block users from providing input.

Valid values:

  • CheckBox
  • RadioButton
  • DropDown
Control/@disablingControlTextStringNText to display next to the disabling GUI control. Intended to describe the effective result of explicitly disabling the clock via its disabling control.
Control/@displayableDatebooleanNInstructs the OMS to display the date.

Applicable when xsi:type is Clock_t (default: false)

Control/@displayableTzbooleanNInstructs the OMS to display the time zone associated with the value entered by the user.

Applicable when xsi:type is Clock_t (default: true)

Control/@editableDatebooleanNInstructs the OMS to allow the user to change the date. The OMS would decide how to do this.

Applicable when xsi:type is Clock_t (default: true)

Control/@editableTzbooleanNInstructs the OMS to allow the user to change the time zone. The OMS would decide how to do this.

Applicable when xsi:type is Clock_t (default: false)

Control/@enablingControlTypestringNDescription of the GUI control to be rendered which directs the OMS to enable the clock and allow it to accept user input.

If an OMS supports this feature and enablingControlType is provided, then the OMS may render a GUI control of this type next to the GUI control intended to accept datetime values from the user.

Valid values:

  • CheckBox
  • RadioButton
  • DropDown
Control/@IDStringIDYUnique identifier of this control. No two controls of the same strategy can have the same ID.
Control/@incrementdecimalNLimits the granularity of a spinner control. Useful in spinner objects to enforce odd-lot and sub-penny restrictions.

Applicable when xsi:type is SingleSpinner_t or Slider_t. (In this case a Slider_t must be used to select a value within a continuous range, say a decimal value between a minimum and maximum value. As opposed to the case where the Slider_t is used to select from a set of values not unlike a DropDownList_t.)

Control/@incrementPolicystringNFor single spinner control, defines how to determine the increment.

Valid values:

  • Static – use value from increment attribute
  • LotSize – use the round lot size of symbol. (If this value is not available, use the value from the increment attribute.)
  • Tick – use symbol minimum tick size. (If this value is not available, use the value from the increment attribute.)

Applicable when xsi:type is SingleSpinner_t.

If no value is supplied then use value from increment attribute.

Please note: The schema file, fixatdl-layout-1-2.xsd, does not include the “Static” enumeration value. If “Static” behavior is desired then do not populate this attribute.

Control/@initFixFieldpositiveIntegerNIndicates the initialization value is to be taken from this standard FIX field. Format: “FIX_” + FIXFieldName. E.g. “FIX_OrderQty”.

Required when initPolicy=“UseFixField”.

Control/@initPolicystringNDescribes how to initialize the control.

If the value of this attribute is undefined or equal to “UseValue” and initValue is defined then initialize with initValue.

If the value is equal to “UseFixField” then attempt to initialize with the value of the tag specified in initFixField. If the value is equal to “UseFixField” and it is not possible to access the value of the specified FIX tag then revert to using initValue. If the value is equal to “UseFixField”, the field is not accessible, and initValue is not defined, then do not initialize.

Valid values:

  • UseValue
  • UseFixField
Control/@initValue(Depends on value of xsi:type)NThe value used to pre-populate the GUI component when the order entry screen is initially rendered. The type of initValue is dependent on the value of Control/@xsi:type.

The following list gives the type of this attribute based on the value of xsi:type.

xsi:type: initValue type

Clock_t: time
TextField_t: string
SingleSelectList_t: string
MultiSelectList_t: MultipleStringValue
Slider_t: double
CheckBox_t: boolean (“true”/“false”)
CheckBoxList_t: MultipleStringValue
SingleSpinner_t: double
DoubleSpinner_t double
DropDownList_t string
EditableDropDownList_t: string
RadioButton_t: boolean (“true”/“false”)
RadioButtonList_t: string
Label_t: string
HiddenField_t: string

The use of initValue also depends on the value of xsi:type.

xsi:type: initValue use

Clock_t: time (expressed in Control/@localMktTz)
TextField_t: string
SingleSelectList_t: enumID of a child ListItem
MultiSelectList_t: enumIDs of child ListItems
Slider_t: valid value returned by the slider
CheckBox_t: “true” (checked) or “false” (unchecked)
CheckBoxList_t: enumIDs of ListItems to be checked (separated by single spaces)
SingleSpinner_t: double
DoubleSpinner_t: double
DropDownList_t: enumID of a child ListItem
EditableDropDownList_t: enumID of a child ListItem
RadioButton_t: “true” (selected) or “false” (unselected)
RadioButtonList_t: enumID of ListItem to be pushed
Label_t: string to render
HiddenField_t: non-displayed string

Required when initPolicy=“UseValue”.

Control/@initValueModeintNDefines the treatment of initValue time. 0: use initValue; 1: use current time if initValue time has passed.

The default value is 0.

Applicable only when Control/@xsi:type is Clock_t.

Control/@innerIncrementdecimalNLimits the granularity of the inner spinner of a double spinner control. Useful in spinner objects to enforce odd-lot and sub-penny restrictions.

Applicable when xsi:type is DoubleSpinner_t.

Control/@innerIncrementPolicystringNFor double spinner control, defines how to determine the increment for the inner set of spinners.

Valid values:

  • Static – use value from innerIncrement attribute
  • LotSize – use the round lot size of symbol
  • Tick – use symbol minimum tick size

Applicable when xsi:type is DoubleSpinner_t.

If no value is supplied then use value from innerIncrement attribute.

Please note: The schema file, fixatdl-layout-1-2.xsd, does not include the “Static” enumeration value. If “Static” behavior is desired then do not populate this attribute.

Control/@labelstringNA title for this control which may be displayed.

If the control is a Label_t then Control/@label or Control/@initValue must be used to define the string which is to be rendered. If both attributes are provided then Control/@initValue takes precedence.

Control/@localMktTzLocalMktTzNThe timezone in which initValue is represented in. Required when initValue is supplied.

Applicable when xsi:type is Clock_t.

Control/@orientationOrientationYDeclares the orientation of the radio buttons within a RadioButtonList or the checkboxes within a CheckBoxList.

Valid values:

  • HORIZONTAL
  • VERTICAL

Applicable when xsi:type is RadioButtonList_t or CheckBoxList_t.

Control/@outerIncrementdecimalNLimits the granularity an outer spinner of a double spinner control. Useful in spinner objects to enforce odd-lot and sub-penny restrictions.

Applicable when xsi:type is DoubleSpinner_t.

Control/@outerIncrementPolicystringNFor double spinner control, defines how to determine the increment for the outer set of spinners.

Valid values:

  • Static – use value from outerIncrement attribute
  • LotSize – use the round lot size of symbol
  • Tick – use symbol minimum tick size

Applicable when xsi:type is DoubleSpinner_t.

If no value is supplied then use value from outerIincrement attribute.

Please note: The schema file, fixatdl-layout-1-2.xsd, does not include the “Static” enumeration value. If “Static” behavior is desired then do not populate this attribute.

Control/@parameterRefStringIDNThe name of the parameter for which this control gives the visual representation. A parameter with this name must be defined within the same strategy as this control.
Control/@radioGroupStringNIdentifies a common group name used by a set of RadioButton_t among which only one radio button may be selected at a time.

Applicable when xsi:type is RadioButton_t.

Control/@rownon-negative intNRow in which this item is to appear in a grid-oriented panel.

Applicable when encompassing StrategyPanel orientation is GRID.

Control/@rowSpannon-negative intNNumber of rows an item is to span in a grid-oriented panel. (default: 1)

Applicable when encompassing StrategyPanel orientation is GRID.

Control/@tooltipstringNTool tip text for rendered GUI objects rendered for the parameter.
Control/@uncheckedEnumRefStringIDNRefers to an enumID defined in the definition of the parameter referred by Control/@parameterRef. This enumID is the output from this control if it is unchecked/unselected.

(See the section A Sample FIXatdl® Document in this document for an example. Examine the parameter “AllowDarkPoolExec” and Control “DPOption” for details.)

Applicable when xsi:type is CheckBox_t or RadioButton_t.

Control/@xsi:typestringYIndicates the type of GUI control that should be rendered on the screen.

Valid values:

  • CheckBox_t
  • CheckBoxList_t
  • Clock_t
  • DoubleSpinner_t
  • DropDownList_t
  • EditableDropDownList_t
  • HiddenField_t
  • Label_t
  • MultiSelectList_t
  • RadioButton_t
  • RadioButtonList_t
  • SingleSelectList_t
  • SingleSpinner_t
  • Slider_t
  • TextField_t

Country Element

AttributeTypeReq’dDescription
Country/@CountryCodeString restricted to “[A-Z0-9]{2}”YISO 3166-1 alpha-2 code for the countries to include or exclude in a given region.
Country/@inclusionstringYIndicates whether this country should be included or excluded from encompassing list.

Valid values:

  • Include
  • Exclude

Edit Element

AttributeTypeReq’dDescription
Edit/@fieldstringNField name for comparison. When the edit is used within a StateRule, this field must refer to the ID of a Control. When the edit is used within a StrategyEdit, this field must refer to either the name of a parameter or a standard FIX field name. When referring to a standard FIX tag then the name must be pre-pended with the string “FIX_”, e.g. “FIX_OrderQty”.

Required when: Edit/@operator is defined.

Edit/@field2stringNValue used as the second operand. Used in conjunction with Edit/@field and Edit/@operator. Similar definition to Edit/@field except that it is mutually exclusive with Edit/@value.

Required when: Edit/@operator is in {GE,GT, LE, LT, EQ, NE} and Edit/@value is not specified.

Edit/@idstringNOptional identifier. Allows for re-use of this edit within StateRule or EditRef elements. This attribute is required if the Edit element is a direct child of either the Strategies or Strategy elements.
Edit/@legNonon-negative intNUsed in conjunction with Edit/@field, declares the leg number of which the field is to be retrieved when the field is evaluated.
Edit/@logicOperatorLogicalOperatorNOperator where operands are one or more Edit elements. Short-circuit evaluation is assumed in all edit statements.

Valid values:

  • AND
  • OR
  • XOR
  • NOT

Required when operator is not present. An edit element must contain either a logicOperator attribute or an operator attribute, but never both.

By convention, XOR returns true when one and only one of its operands is true.

Edit/@operatorOperatorNOne of the following enumerated types:

  • EX (Exists. I.e. the user has entered a value)
  • NX (Not exists. I.e. the user has not entered a value)
  • EQ (Equal)
  • LT (Less than)
  • GT (Greater than)
  • NE (Not equal)
  • LE (Less than equal)
  • GE (Greater than equal)

Required when logicOperator is not present. An Edit element must contain either a logicOperator attribute or an operator attribute, but never both.

Edit/@valuestringNValue used as the second operand. Used in conjunction with Edit/@field and Edit/@operator. Represents a string literal value and not a reference.

When Edit is a descendant of a StateRule element, Edit/@value refers to the value of the control referred by Edit/@field. If the control referred by Edit/@field has enumerated values then Edit/@value refers to the enumID of one of the control’s ListItem elements.

When Edit is a descendant of a StrategyEdit element, Edit/@value refers to the wireValue of the parameter referred by Edit/@field.

Required when: Edit/@operator is in {GE, GT, LE, LT, EQ, NE} and Edit/@field2 is not specified.

EditRef/@idstringYRefers to an ID of a previously defined Edit element. The Editelement may be defined at the strategy level or at the strategies level.

EnumPair Element

AttributeTypeReq’dDescription
EnumPair/@enumIDStringIDYA unique identifier of an enumPair element per parameter.
EnumPair/@indexintegerNDeprecated. Previously defined an ordering of the enumerated values. If defined it should be ignored.
EnumPair/@wireValuestringYThe corresponding value that is used to populate the FIX message.

Filter Element

AttributeTypeReq’dDescription
Filter/@idStringIDYAn identifier for a global filter definition. Elements which declare a filter attribute must have it refer to a global filter ID.

FixMsg Element

AttributeTypeReq’dDescription
FixMsg/@msgTypestringYMethod in which the algo provider can accept this type of order.

Valid values:

  • NewOrderSingle
  • NewOrderMultileg
  • NewOrderList

ListItem Element

AttributeTypeReq’dDescription
ListItem/@enumIDStringIDNA reference to the enumPair specified in the parameter definition specified by the parent Control’s parameterRef attribute. Use is optional when the parent Control element does not refer to a parameter.

Required when: the parent Control element has a defined parameterRef attribute.

ListItem/@uiRepstringYThe value shown in the list. These are the values that go into Java, .Net or Web list controls.

Market Element

AttributeTypeReq’dDescription
Market/@inclusionstringYIndicates whether this market should be included or excluded from encompassing list.

Valid values:

  • Include
  • Exclude
Market/@MICCodestringYString representing a market or exchange – ISO 10383 Market Identifier Code (MIC).

Parameter Element

AttributeTypeReq’dDescription
Parameter/@constValue(Depends on value of xsi:type)NThe value of a parameter that is constant and is not referred by a Control element. This value must be sent on the wire by the order generating application.

The following list gives the type of this attribute based on the value of xsi:type.

xsi:type: constValue type

Int_t: int
Length_t: positiveInteger
NumInGroup_t: positiveInteger
SeqNum_t: positiveInteger
TagNum_t: positiveInteger
Float_t: decimal
Qty_t: Qty
Price_t: Price
PriceOffset_t: PriceOffset
Amt_t: Amt
Percentage_t: Percentage
Char_t: char
Boolean_t: Boolean (‘Y’/‘N’)
String_t: string
MultipleCharValue_t: MultipleCharValue
Currency_t: Currency
Exchange_t: Exchange
MonthYear_t: MonthYear
UTCTimestamp_t: time
UTCTimeOnly_t: time
LocalMktDate_t: date
UTCDateOnly_t: UTCDateOnly
Data_t: Data
MultipleStringValue_t: MultipleStringValue
Country_t: Country
Language_t: language
TZTimestamp_t: time
TZTimeOnly_t: TZTimeOnly
Tenor_t: Tenor

When defined in UTCTimestamp_t elements the following apply:

  • Contains only time information – not day, month or year.
  • Used in conjunction with Parameter/@localMktTz, this value must be used for the time portion of a UTCTimestamp that is sent on the wire by the order generating application. For example, if constValue=“08:30:00” and localMktTz=“America/Chicago”, daylight savings time is in effect in Chicago and the date is July 1, 2010, then the value “20100701-13:30:00” would be sent on the wire.
Parameter/@definedByFIXbooleanNIndicates whether the parameter is a redefinition of a standard FIX tag. The default value is False.

For example, if the algorithm redefines the OrderQty(38) then the parameter declaration may be similar to:

<Parameter name="OrderQty" xsi:type="Qty_t"
    fixTag="38" definedByFIX="true"
    use="required"/>
Parameter/@falseWireValuestringNApplicable only when xsi:type is Boolean_t.

This attribute is targeted for deprecation.

To achieve the same functionality, it is recommended that a Char_t or String_t type parameter be used instead of a Boolean_t. The parameter should have two EnumPairs defined with one defining the false wire-value and the other defining the true wire-value. The parameter should be bound to a CheckBox control. The CheckBox control should define the parameters checkedEnumRef and uncheckedEnumRef to refer to the enumIDs of the parameter. (See the section A Sample FIXatdl® Document in this document for an example. Examine the Parameter “AllowDarkPoolExec” and Control “DPOption” for details.)

The deprecated use is described as follows:

Defines the value with which to populate the FIX message when the boolean parameter is False. Overrides the standard FIX boolean value of “N”. I.e. if this attribute is not provided then the order-sending application must use “N”.

If it is desired that the FIX message is not to be populated with this tag when the value of the parameter is false, then falseWireValue should be defined as “{NULL}”.

Parameter/@filterstringNRefers to the ID of a globally defined filter. Affects whether the parameter is applicable in the strategy.
Parameter/@fixTagpositiveIntegerNThe tag that will hold the value of the parameter.

Required when: parameter value is intended to be transported over the wire.

If fixTag is not provided then the Strategies-level attribute, tag957Support, must be set to true, indicating that the order recipient expects to receive algo parameters in the StrategyParameterGrp repeating group beginning at tag 957.

Parameter/@invertOnWirebooleanNApplicable when: xsi:type is MultipleStringValue_t or MultipleCharValue_t.

Instructs the OMS whether to perform a bitwise “not” operation on each element of these lists.

Parameter/@localMktTzstringNDescribes the time zone without indicating whether daylight savings is in effect. Valid values are taken from names in the Olson time zone database. All are of the form Area/Location, where Area is the name of a continent or ocean, and Location is the name of a specific location within that region. E.g. America/Chicago.

Applicable when xsi:type is UTCTimestamp_t.

Parameter/@maxLengthnon-negative intNApplicable when xsi:type is String_t, MultipleCharValue_t or MultipleStringValue_t.

The maximum allowable length of the parameter.

Parameter/@maxValue(Depends on value of xsi:type)NMaximum value of the parameter accepted by the algorithm provider.

The following list gives the type of this attribute based on the value of xsi:type.

xsi:type: initValue type

Int_t: int
Float_t: decimal
Qty_t: Qty
Price_t: Price
PriceOffset_t: PriceOffset
Amt_t: Amt
Percentage_t: Percentage
MonthYear_t: MonthYear
UTCTimestamp_t: time
UTCTimeOnly_t: time
LocalMktDate_t: date
UTCDateOnly_t: UTCDateOnly
TZTimestamp_t: time
TZTimeOnly_t: TZTimeOnly
Tenor_t: Tenor

This attribute is applicable only for the xsi:type values listed above.

maxValue has no default value.

When defined in UTCTimestamp_t elements the following applies:

  • Maximum local market time. Represents an instance of time that recurs every day. Contains only time information – not day, month or year.
  • Used in conjunction with Parameter/@localMktTz, this value represents the maximum time of day allowed for the parameter.
Parameter/@minLengthnon-negative intNApplicable when xsi:type is String_t.

The minimum allowable length of the parameter.

Parameter/@minValue(Depends on value of xsi:type)NMinimum value of the parameter accepted by the algorithm provider.

The following list gives the type of this attribute based on the value of xsi:type. Default values, where applicable, are provided, otherwise minValue has no default value.

xsi:type: initValue type (default)

Int_t: int
Float_t: decimal
Qty_t: Qty (0)
Price_t: Price (0)
PriceOffset_t: PriceOffset (0)
Amt_t: Amt (0)
Percentage_t: Percentage (0)
MonthYear_t: MonthYear
UTCTimestamp_t: UTCTimestamp
UTCTimeOnly_t: time
LocalMktDate_t: date
UTCDateOnly_t: UTCDateOnly
TZTimestamp_t: time
TZTimeOnly_t: TZTimeOnly
Tenor_t: Tenor

This attribute is applicable only for the xsi:type values listed above.

When defined in UTCTimestamp_t the following applies:

  • Minimum local market time. Represents an instance of time that recurs every day. Contains only time information – not day, month or year.
  • Used in conjunction with Parameter/@localMktTz, this value represents the minimum time of day allowed for the parameter.
Parameter/@multiplyBy100booleanNApplicable for xsi:type of Percentage_t. If true then percent values must be multiplied by 100 before being sent on the wire. For example, if multiplyBy100 were false then the percentage, 75%, would be sent as 0.75 on the wire. However, if multiplyBy100 were true then 75 would be sent on the wire.

If not provided it should be interpreted as false.

Use of this attribute is not recommended. The motivation for this attribute is to maximize compatibility with algorithmic interfaces that are non-compliant with FIX in regard to their handling of percentages. In these cases an integer parameter should be used instead of a percentage.

Parameter/@mutableOnCxlRplbooleanNIndication of whether the parameter’s value can be modified by an OrderCancelReplaceRequest(35=G) message.

Default value: true

Parameter/@namestring restricted to
“[A-Za-z]
[A-Za-z0-9_]
{0,255}”
YThe name of the parameter. No two parameters of any strategy may have the same name. The name may be used as a unique key when referenced from the other sub-schemas. Names must begin with an alpha character followed only by alpha-numeric characters and must not contain whitespace characters.
Parameter/@precisionnon-negative intNThe number of digits to the right of the decimal point in which to round when populating the FIX message. Lack of this attribute indicates that the value entered by the user should be taken as-is without rounding.

Applicable when xsi:type is Float_t, Price_t, PriceOffset_t or Qty_t.

Parameter/@revertOnCxlRplbooleanNIndicates how to interpret those tags that were populated in an original order but are not populated in a subsequent cancel/replace of the order message. If this value is true then revert to the value of the original order, otherwise a null value or the parameter’s default value (Control/@initValue) is to be used or if none is specified, the parameter is to be omitted.

Default value: false

NOTE: Although revertOnCxlRpl and mutableOnCxlRpl might appear to be mutually exclusive, this is not strictly the the case, and as the default value for mutableOnCxlRpl is ‘true’, it is recommended practice to explicitly include mutableOnCxlRpl=“false” if the option revertOnCxlRpl=“true” is set for a given parameter (assuming of course this is the intended behaviour).

Parameter/@scopestringNThe scope of the parameter. Applicable to a multileg order type.

Valid values:

  • LEG (indicating the parameter appears in the legs of the order)
  • ORDER (indicating it appears in the main body of the order)
Parameter/@trueWireValuestringNApplicable only when xsi:type is Boolean_t.

This attribute is targeted for deprecation.

To achieve the same functionality, it is recommended that a Char_t or String_t type parameter be used instead of a Boolean_t. The parameter should have two EnumPairs defined with one defining the false wire-value and the other defining the true wire-value. The parameter should be bound to a CheckBox control. The CheckBox control should define the parameters checkedEnumRef and uncheckedEnumRef to refer to the enumIDs of the parameter. (See the section A Sample FIXatdl® Document in this document for an example. Examine the Parameter “AllowDarkPoolExec” and Control “DPOption” for details.)

The deprecated use is described as follows:

Defines the value with which to populate the FIX message when the boolean parameter is True. Overrides the standard FIX boolean value of “Y”. I.e. if this attribute is not provided then the order-sending application must use “Y”.

If it is desired that the FIX message is not to be populated with this tag when the value of the parameter is false, then falseWireValue should be defined as “{NULL}”.

Parameter/@useUse_tNIndicates whether a parameter is optional or required.

Valid values:

  • optional (default)
  • required
Parameter/@xsi:typestringYIndicates the type of the parameter. The type of the parameter determines which of the extended attributes are applicable. The namespace, xsi, must be declared within the Strategies element with the statement: xmlns:xsi=http://www.w3.org/2001/XMLSchema-instance.

Valid values:

  • Amt_t
  • Boolean_t
  • Char_t
  • Country_t
  • Currency_t
  • Data_t
  • Exchange_t
  • Float_t
  • Int_t
  • Language_t
  • Length_t
  • LocalMktDate_t
  • MonthYear_t
  • MultipleCharValue_t
  • MultipleStringValue_t
  • NumInGroup_t
  • Percentage_t
  • Price_t
  • PriceOffset_t
  • Qty_t
  • SeqNum_t
  • String_t
  • TagNum_t
  • Tenor_t
  • TZTimeOnly_t
  • TZTimestamp_t
  • UTCDateOnly_t
  • UTCTimeOnly_t
  • UTCTimestamp_t

Region Element

AttributeTypeReq’dDescription
Region/@inclusionstringYIndicates whether this region should be included or excluded when declared within a list of regions.

Valid values:

  • Include
  • Exclude
Region/@nameStringYThe name of the region.

Valid values:

  • TheAmericas
  • EuropeMiddleEastAfrica
  • AsiaPacificJapan

RepeatingGroup Element

AttributeTypeReq’dDescription
RepeatingGroup/@fixTagintNThe FIX tag corresponding to a NoXXX tag. Indicates that the Parameter elements defined within the RepeatingGroup element are repeating group tags when sent over the wire.

Valid values:

  • 555 (NoLegs)
  • 68 (TotNoOrders)

In the case where fixTag=68, either multiple NewOrderList(35=E) messages may be sent where the total number of orders over the entire list must be equal to Strategy/@totalOrders, or multiple NewOrderSingle(35=D) messages may be sent where total number of orders must be equal to Strategy/@totalOrders.

RepeatingGroup/@maxSizeintNThe maximum number of legs or list orders.
RepeatingGroup/@minSizeintYThe minimum number of legs or list orders.
RepeatingGroup/@namestringNFIX Field name of the repeating group. Must refer to a FIX field of NumInGroup type.

Valid values:

  • TotNoOrders (when NewOrderList(35=E) messages are expected)
  • NoLegs (when NewOrderMultileg(35=AB) messages are expected)

This field should be omitted when NewOrderSingle(35=D) messages are expected.

SecurityType Element

AttributeTypeReq’dDescription
SecurityType/@inclusionstringYIndicates whether this security type should be included or excluded from encompassing list.

Valid values:

  • Include
  • Exclude
SecurityType/@namestringYIndicates type of security. Valid values equivalent to FIX SecurityType(167) values.

StateRule Element

AttributeTypeReq’dDescription
StateRule/@enabledbooleanNIndicates whether or not to enable the control when the edit expression of the StrategyEdit element evaluates to True. The desired behavior is as follows:

  • when the StateRule element’s edit condition is true and enabled=true then enable the control;
  • when the edit condition is true and enabled=false then disable the control;
  • when the edit condition is false and enable=true then disable the control;
  • when the edit condition is false and enabled=false then enable the control.

The value of a control’s “enabled” property does not play a role in determining whether a value is populated when a FIX order message is generated. I.e. A control’s “enabled” property does not influence what goes out on the wire.

StateRule/@valuestringNGUI control’s displayed value should be set to this value when edit condition is true. Although the type of this attribute has been listed as string, ultimately the type of this attribute must be compatible with the type of the control. For example, if the control is numeric, such as a SingleSpinner, then a string containing a numeric value would an appropriate value (e.g. “15”).

If the control contains ListItem elements then allowable values of StateRule/@value are restricted to the enumIDs of the ListItem elements.

A special token, “{NULL}”, may be used for the value of this attribute to indicate that the control should be set to an uninitialized state. Controls that are un-initialized should have no value. The effect of an un-initialized control is as follows: When an order is to be generated, the controls which are linked to parameters will have their values retrieved. If there is no retrieved value because the control was un-initialized then the parameter should have no value and its associated FIX tag should be excluded from the message. This is relevant only for controls that can be in an un-initialized state such as spinners and text fields. Controls such as check boxes and radio buttons are always initialized. (They are either checked or unchecked.)

StateRule/@visiblebooleanNIndicates whether or not to show the control when the boolean expression, defined by the Edit element, evaluates to True. The desired behavior is as follows: when the StateRule element’s edit condition is true and visible=true then display the control; when the edit condition is true and visible=false then hide the control; when the edit condition is false and visible=true then hide the control; when the edit condition is false and enabled=false then display the control.

Strategies Element

AttributeTypeReq’dDescription
Strategies/@changeStrategyOnCxlRplbooleanNIndicates whether a new strategy can be chosen during a Cancel/Replace.
Strategies/@draftFlagIdentifierTagpositiveIntegerNThe tag within the FIX order message to be populated with a boolean (‘Y’/‘N’) indicating whether the order is a draft.
Strategies/@imageLocationstringNFilepath or URL of an image file or logo of the algo providing firm.
Strategies/@strategyIdentifierTagpositiveIntegerYThe tag within the FIX order message to be populated with a value identifying the chosen strategy. E.g. if strategyIdentifierTag is 25001 and the chosen strategy is identified by the value ‘VWAP’ then the FIX order message would contain the tag-value pair 25001=VWAP.
Strategies/@versionIdentifierTagpositiveIntegerNThe tag within the FIX order message to be populated with a value identifying the version of a chosen strategy. For example, if versionIdentifierTag is 25002 and the version of the chosen strategy is ‘2.01’ then the FIX order message would contain the tag-value pair 25001=2.01
Strategies/@tag957SupportbooleanNIndicates whether the order recipient can receive algorithmic parameters in the StrategyParametersGrp repeating group starting with NoStrategyParameters(957). If this mode of parameter transport is not supported then the fixTag attribute of all Parameter elements is required.

Default value: false.

Strategy Element

AttributeTypeReq’dDescription
Strategy/@commonIDTagnon-negative intNUsed to denote where to place a common basket ID when linking together single orders.

Used to denote the tag which must contain a common ID linking all legs of a multileg order together. Applicable when multileg orders are delivered via several NewOrderSingle(35=D) messages.

Strategy/@disclosureDocanyURINURL of a disclosure document supplied by the algorithm provider.
Strategy/@filterstringNA reference to the ID of a Filter element defined in the scope of the Strategies element.
Strategy/@fixMsgTypestringNIndicates the FIX message to use when transmitting the order. Values taken from FIX field MsgType(35).

Valid values:

  • D (NewOrderSingle)
  • E (NewOrderList)
  • AB (NewOrderMultiLeg)
  • s (NewOrderCross)
Strategy/@imageLocationstringNFile path or URL of an image file or logo of this particular strategy.
Strategy/@legsAreSeverablebooleanNIf true, then an individual leg may be canceled or replaced. Otherwise, every leg of the order must be canceled, or every leg must be resent when only one is replaced.

Applicable when multileg orders are delivered via several NewOrderSingle(35=D) messages.

Strategy/@legSequenceTagnon-negative intNUsed to denote the tag which will contain the sequence number of an order of a basket or leg of a multileg order.

Applicable when multileg orders are delivered via several NewOrderSingle(35=D) messages. Used in conjunction with the totalLegsTag attribute.

Strategy/@maxLegsnon-negative int

string constant “unbounded” (strategy accepts any number of legs)

NUse to indicate the maximum number of legs an order of this type requires. A renderer would use this information to display the required number of GUI panels where parameters can be entered and to properly package a multileg order in one or more FIX messages.
Strategy/@minLegsnon-negative intNUse to indicate the minimum number of legs an order of this type requires. A renderer would use this information to display the required number of GUI panels where parameters can be entered and to properly package a multileg order in one or more FIX messages.
Strategy/@nameStringIDYUnique identifier of a strategy. Strategy names must be unique per provider.
Strategy/@objectivestringNAn optional classification of a multi-leg order.

Valid values:

  • PAIRS
  • BUTTERFLY
  • BUY-WRITE
  • CALENDAR-SPREAD
  • PRICE-SPREAD
  • DIAGONAL-SPREAD
  • SPREAD
  • PORTFOLIO
Strategy/@orderSequenceTagnon-negative intNUsed to denote the tag which will contain the sequence number of a particular order of a basket.
Strategy/@providerIDstringNIdentifies the firm providing the algorithm.
Strategy/@providerSubIDstringNA further level of firm identification.
Strategy/@requiredNumberOfLegsnon-negative intNUsed to denote number of repeating orders in a NewOrderList(35=E) message or a basket of NewOrderSingle(35=D) messages that the algo provider expects to receive.
Strategy/@sentOrderLinkanyURINPrefix portion of a URL to access the order or draft at the target, e.g., https://xyz.com/algo/dashboard?SenderCompID=OMS. Append to this the specific SenderCompID string, an ampersand, “ClOrdID=”, and the specific ClOrdID-string. Trader hits this full URL to communicate regarding the order or draft. See additional documentation.
Strategy/@totalLegsnon-negative intNUsed when msgType(35)=AB and denotes the number of repeating legs.
Strategy/@totalLegsTagnon-negative intNUsed to denote the tag which will contain the total number of legs of an order.

Applicable when multileg orders are delivered via several NewOrderSingle(35=D) messages. Used in conjunction with the legSequenceTag attribute.

Strategy/@totalOrdersnon-negative intNUsed to denote number of repeating orders in a NewOrderList(35=E) message or a basket of NewOrderSingle(35=D) messages.
Strategy/@totalOrdersTagnon-negative intNIn basket trading, used to denote where to place the total number of orders of a basket.
Strategy/@uiRepstringNThe name of the strategy as rendered in the UI. If not provided then the “name” attribute should be used. (This is the value rendered on the UI when the user is presented with a choice of algorithms.)
Strategy/@versionstringYInformation to facilitate version control.
Strategy/@wireValuestringYThe value used to identify the algorithm. The tag referred to by Strategy/@strategyIdentifierTag will be set to this value.

StrategyEdit Element

AttributeTypeReq’dDescription
StrategyEdit/@errorMessagestringYThe error message to display when the boolean expression defined by the Edit element of a StrategyEdit element evaluates to False.

StrategyPanel Element

AttributeTypeReq’dDescription
StrategyPanel/@borderBorderNRecommended border for the panel.

Valid values:

  • None
  • Line
StrategyPanel/@collapsedbooleanNInitial visual state of a panel. Indicates whether a panel is initially drawn in a collapsed state.

Default value: false.

StrategyPanel/@collapsiblebooleanNIndicates whether panel can be collapsed.

Default value: false.

(Note that the default value may conflict with the default value defined in the schema file, fixatdl-layout-1-2.xsd. To avoid conflict it is recommended that this attribute be treated as a required attribute.)

StrategyPanel/@colorstringNThe background color of a panel. The value should appear as the RBG combination separated by commas.

It is recommended that vendors ignore this attribute and rely on their own color scheme.

StrategyPanel/@fillOrderstringNDescribes how the grid items are to be arranged.

Valid values:

  • COL-MAJOR (default)
  • ROW-MAJOR

Applicable when encompassing StrategyPanel orientation is GRID.

StrategyPanel/@orientationOrientationYDeclares the orientation of the components (parameters or nested StrategyPanel elements) within a StrategyPanel.

Valid values:

  • HORIZONTAL
  • VERTICAL
  • GRID
StrategyPanel/@numRowsnon-negative intNNumber of rows.

Applicable when encompassing StrategyPanel orientation is GRID.

StrategyPanel/@numColsnon-negative intNNumber of columns.

Applicable when encompassing StrategyPanel orientation is GRID.

StrategyPanel/@titlestringNTitle that appears in the panel border.

VendorConfig Element

AttributeTypeReq’dDescription
VendorConfig/@legParametersbooleanNIf true, indicates that this strategy definition is tailored for vendor E/OMSs that support leg-level parameters. If false, indicates that this strategy is tailored for E/OMSs that do not support leg-level parameters.
VendorConfig/@tag66SupportbooleanNIf true, indicates that this strategy definition is tailored for vendor E/OMSs that will deliver an ID linking components of a multi-leg order (the common ID) in ListID(66). If false, the algo provider will not expect a common ID in ListID(66).

Type Definitions

The types of the attribute listed in the previous table are defined here. Many of these datatypes have been leveraged from the FIXML schema file fixml-datatypes-5-0-SP2.xsd. Some come from the XML Schema namespace http://www.w3.org/2001/XMLSchema. All others have been defined explicitly within the FIXatdl® schema files.

Type NameSourceDescription
AmtFIXMLFloat value typically representing a Price times a Qty.
anyURIXML SchemaThis datatype represents a URI, which includes web page addresses (commonly called URLs).
booleanXML SchemaValid values are “true” and “false”.
BooleanFIXMLCharacter field containing one of two values: ‘Y’ (for True/Yes), ‘N’ (for False/No).
BorderFIXatdl®Enumerated type describing the border of a panel. Valid values are:

  • None
  • Line
charXML SchemaChar value, can include any alphanumeric character or punctuation except the delimiter. All char fields are case sensitive (i.e. m != M).

Restricted to the pattern “.{1}”.

CountryFIXMLString representing a country using ISO 3166 Country code (2 characters) values.
CurrencyFIXMLString representing a currency type using ISO 4217 Currency code (3 characters) values.
DataFIXMLString containing raw data with no format or content restrictions. Data fields are always immediately preceded by a length field. The length field should specify the number of bytes of the value of the data field (up to but not including the terminating SOH). Caution: the value of one of these fields may contain the delimiter (SOH) character. Note that the value specified for this field should be followed by the delimiter (SOH) character as all fields are terminated with an SOH.

Not applicable to FIXatdl®.

decimalXML SchemaThe XML Schema built-in datatype representing arbitrary precision decimal numbers.
doubleXML SchemaThe XML Schema built-in datatype, double.
ExchangeFIXMLString representing a market or exchange – ISO 10383 Market Identifier Code (MIC).
intXML SchemaAn integer. May be negative.
languageXML SchemaString identifier for a national language – uses ISO 639-1 standard.

Examples:

  • en (English)
  • fr (French)
LengthFIXMLInt representing a length in bytes. Value must be positive.
LocalMktTzFIXatdl®An enumeration type consisting of the timezone database (or Olson database) codes for various timezones around the world. For example: “Europe/Zurich”. Note that these codes do not provide GMT offset or daylight savings information.
MonthYearFIXMLString field representing month of a year. An optional day of the month can be appended or an optional week code. Valid formats: YYYYMM YYYYMMDD YYYYMMWW YYYY = 0000-9999, MM = 01-12, DD = 01-31, WW = w1, w2, w3, w4, w5.
MultipleCharValueFIXMLString field containing one or more space delimited char values.
MultipleStringValueFIXMLString field containing one or more space delimited string values.
OrientationFIXatdl®Enumerated type describing the orientation of a group of GUI components or controls. Valid values: “HORIZONTAL”, “VERTICAL”, “GRID”.
PercentageFIXMLFloat value representing a percentage (e.g. .05 represents 5% and .9525 represents 95.25%). Note the number of decimal places may vary.
positiveInteger (posint)XML SchemaAn integer greater than or equal to 0.
PriceFIXMLFloat value representing a price. Note the number of decimal places may vary. For certain asset classes, prices may be negative values. For example, prices for options strategies can be negative under certain market conditions.
PriceOffsetFIXMLFloat value representing a price offset, which can be mathematically added to a “Price”. Note the number of decimal places may vary and some fields such as LastForwardPoints(195) may be negative.
QtyFIXMLfloat value capable of storing either a whole number (no decimal places) of “shares” (securities denominated in whole units) or a decimal value containing decimal places for non-share quantity asset classes (securities denominated in fractional units).
SeqNumFIXMLInt representing a message sequence number. Value must be positive.
stringXML SchemaThe string datatype represents character strings in XML.
StringIDFIXatdl®String with pattern restriction “[A-Za-z][A-Za-z0-9_]{0,255}”.
timeXML SchemaTime specified in the format “hh:mm[:ss]” or “hh:mm[:ss]{+,-}hh:mm”. In the latter format the offset from UTC is provided.
dateXML SchemaThe date data type is used to specify a date. The date is specified in the following form “YYYY-MM-DD” where:

  • YYYY indicates the year
  • MM indicates the month
  • DD indicates the day
TZTimestampFIXMLString field representing a time/date combination representing local time with an offset to UTC to allow identification of local time and timezone offset of that time. The representation is based on ISO 8601.

Format is YYYYMMDD-HH:MM:SS[Z | [ + | – hh[:mm]]] where YYYY = 0000 to 9999, MM = 01-12, DD = 01-31 HH = 00-23 hours, MM = 00-59 minutes, SS = 00-59 seconds, hh = 01-12 offset hours, mm = 00-59 offset minutes

Example: 20060901-07:39Z is 07:39 UTC on 1st of September 2006

Example: 20060901-02:39-05 is five hours behind UTC, thus Eastern Time on 1st of September 2006

Example: 20060901-15:39+08 is eight hours ahead of UTC, Hong Kong/Singapore time on 1st of September 2006

Example: 20060901-13:09+05:30 is 5.5 hours ahead of UTC, India time on 1st of September 2006.

TZTimeOnlyFIXMLString field representing the time represented based on ISO 8601. This is the time with a UTC offset to allow identification of local time and timezone of that time.

Format is HH:MM[:SS][Z | [ + | – hh[:mm]]] where HH = 00-23 hours, MM = 00-59 minutes, SS = 00-59 seconds, hh = 01-12 offset hours, mm = 00-59 offset minutes.

Example: 07:39Z is 07:39 UTC

Example: 02:39-05 is five hours behind UTC, thus Eastern Time

Example: 15:39+08 is eight hours ahead of UTC, Hong Kong/Singapore time

Example: 13:09+05:30 is 5.5 hours ahead of UTC, India time.

TenorFIXMLPattern used to allow the expression of FX standard tenors in addition to the base valid enumerations defined for the field that uses this pattern data type. This pattern data type is defined as follows:

Dx = tenor expression for “days”, e.g. “D5”, where “x” is any integer > 0

Mx = tenor expression for “months”, e.g. “M3”, where “x” is any integer > 0

Wx = tenor expression for “weeks”, e.g. “W13”, where “x” is any integer > 0

Yx = tenor expression for “years”, e.g. “Y1”, where “x” is any integer > 0

UTCDateOnlyFIXMLString Date represented in UTC (Universal Time Coordinated, also known as “GMT”) in YYYYMMDD format. This special-purpose field is paired with UTCTimeOnly to form a proper UTCTimestamp for bandwidth-sensitive messages.

Valid values:

YYYY = 0000-9999, MM = 01-12, DD = 01-31.

UTCTimeOnlyFIXMLString Time-only represented in UTC (Universal Time Coordinated, also known as “GMT”) in either HH:MM:SS (whole seconds) or HH:MM:SS.sss (milliseconds) format, colons, and period required. This special-purpose field is paired with UTCDateOnly to form a proper UTCTimestamp for bandwidth-sensitive messages.

Valid values:

HH = 00-23, MM = 00-60 (60 only if UTC leap second), SS = 00-59. (without milliseconds)

HH = 00-23, MM = 00-59, SS = 00-60 (60 only if UTC leap second), sss=000-999 (indicating milliseconds).

UTCTimestampFIXMLString representing Time/date combination represented in UTC (Universal Time Coordinated, also known as “GMT”) in either YYYYMMDD-HH:MM:SS (whole seconds) or YYYYMMDD-HH:MM:SS.sss (milliseconds) format, colons, dash, and period required.

Valid values:

YYYY = 0000-9999, MM = 01-12, DD = 01-31, HH = 00-23, MM = 00-59, SS = 00-60 (60 only if UTC leap second) (without milliseconds).

YYYY = 0000-9999, MM = 01-12, DD = 01-31, HH = 00-23, MM = 00-59, SS = 00-60 (60 only if UTC leap second), sss=000-999 (indicating milliseconds).

Leap Seconds: Note that UTC includes corrections for leap seconds, which are inserted to account for slowing of the rotation of the earth. Leap second insertion is declared by the International Earth Rotation Service (IERS) and has, since 1972, only occurred on the night of Dec. 31 or Jun 30. The IERS considers March 31 and September 30 as secondary dates for leap second insertion, but has never utilized these dates. During a leap second insertion, a UTCTimestamp field may read “19981231-23:59:59”, “19981231-23:59:60”, “19990101-00:00:00” (see http://tycho.usno.navy.mil/leapsec.html.)

Abstract Element Extensions

There are two elements in the schema that are defined as abstract. For example, they cannot be included in a FIXatdl® document without being extended by another element via the XML Schema extension element. All instances of these elements must indicate a derived type that is not abstract via use of the attribute xsi:type defined in the namespace http://www.w3.org/2001/XMLSchema-instance.

Parameter Element Extension

Custom parameters received by an algorithmic order recipient must be of a type known to the recipient. For example, if the recipient is expecting a floating point number in a particular tag then the order sender must make certain that an actual floating point number goes in that tag. FIXatdl® requires that any custom parameter to an algorithm must be of a type defined by the FIX Protocol. So the schema provides a set of complex types that are used to extend the Parameter element. These complex types directly correspond to the enumeration type description of StrategyParameterType(959) in the FIX Latest specification.

It is required that each Parameter element be extended by setting the attribute xsi:type equal to the name of one of the FIXatdl® parameter extension types. An abstract Parameter element has the following attributes (which are described in the section Attribute Definitions):

  • name
  • fixTag
  • use
  • mutableOnCxlRpl
  • revertOnCxlRpl
  • definedByFIX
  • filter
  • scope
  • xsi:type

When the Parameter element is extended it gains several more attributes depending on the element to which it is extended.

The types of these attributes are also dependent on the extended element and may vary from one Parameter element to another.

The following table presents the xsi:type names, the expected data type of the wire-value and the extended attributes that apply only to the specific parameter extension type.

Parameter xsi:typeCorresponding FIX TypesAttribute Name1Attribute Type2
Amt_tAmtminValue
maxValue
constValue
decimal
decimal
decimal
Boolean_tBooleantrueWireValue3
falseWireValue4
constValue
string
string
boolean
Char_tcharconstValuechar
Country_tCountryconstValueCountry
Currency_tCurrencyconstValuestring
Data_tdataminLength
maxLength
constValue
Length
Length
Data
Exchange_tExchangeconstValueExchange
Float_tfloatminValue
maxValue
constValue
precision
decimal
decimal
decimal
non-negative int
Int_tintminValue
maxValue
constValue
int
int
int
Language_tLanguageconstValuelanguage
Length_tLengthconstValuepositiveInteger
LocalMktDate_tLocalMktDateminValue
maxValue
constValue
LocalMktDate
LocalMktDate
LocalMktDate
MonthYear_tmonth-yearminValue
maxValue
constValue
MonthYear
MonthYear
MonthYear
MultipleCharValue_tMultipleCharValueminLength
maxLength
constValue
invertOnWire
Length
Length
MultipleCharValue
boolean
MultipleStringValue_tMultipleStringValueminLength
maxLength
constValue
invertOnWire
Length
Length
MultipleStringValue
boolean
NumInGroup_tNumInGroupconstValuepositiveInteger
Percentage_tPercentageminValue
maxValue
constValue
multiplyBy100
Percentage
Percentage
Percentage
boolean
Price_tPriceminValue
maxValue
constValue
precision
Price
Price
Price
non-negative int
PriceOffset_tPriceOffsetminValue
maxValue
constValue
precision
PriceOffset
PriceOffset
PriceOffset
non-negative int
Qty_tQtyminValue
maxValue
constValue
precision
Qty
Qty
Qty
non-negative int
SeqNum_tSeqNumconstValuepositiveInteger
String_tstringminLength
maxLength
constValue
Length
Length
string
TagNum_tintconstValuepositiveInteger
Tenor_tTenorconstValueTenor
UTCDateOnly_tUTCDateOnlyminValue
maxValue
constValue
UTCDateOnly
UTCDateOnly
UTCDateOnly
UTCTimeOnly_tUTCTimeOnlyminValue
maxValue
constValue
time
time
time
UTCTimestamp_tUTCTimestampminValue
maxValue
constValue
localMktTz
time
time
time
LocalMktTz
TZTimestamp_tTZTimestampminValue
maxValue
constValue
time
time
time
TZTimeOnly_tTZTimeOnlyminValue
maxValue
constValue
TZTimeOnly
TZTimeOnly
TZTimeOnly

For example, in the following code snippet an algorithmic parameter, “MktOnCloseFlag”, is defined as being a “Boolean_t” type.

<Parameter name="MktOnCloseFlag" xsi:type="Boolean_t" fixTag="28001" use="required" trueWireValue="T" falseWireValue="F"/>

Notice that by setting xsi:type of this parameter to “Boolean_t”, the attributes trueWireValue and falseWireValue, which are members of the derived element and accept standard XML string values, can now be used.

[Please note that the previous example shows two attributes which have been deprecated, Parameter/@trueWireValue and Parameter/@falseWireValue. The intention was to illustrate how extended elements are used.]

In this next snippet a quantity parameter is defined.

<Parameter name="CrossQty" xsi:type="Qty_t" fixTag="28002" use="required" minValue="100"/>

By setting xsi:type to “Qty_t”, a value for minValue can be provided.

Control Element Extension

As with extensions to the Parameter element, FIXatdl® provides a set of elements that are derived from the Control element. Each of these elements inherits the attributes of the Control element. They also have their own distinct attributes.

An abstract Control element has the following attributes (which are described in the section Attribute Definitions):

  • ID
  • parameterRef
  • label
  • initFixField
  • initPolicy
  • tooltip
  • disableForTemplate
  • filter
  • xsi:type

When the Control element is extended it gains several more attributes depending on the element to which it is extended.

The types of these attributes are also dependent on the extended element and may vary from one Control element to another.

The following types are used to extend the Control element:

Control xsi:typeDescription of desired controlAttribute Name5Attribute Type6
Clock_tClock with hours, minutes, seconds and AM/PM setting.

Depending on the parameter type, this control may optionally also display a date selector.

initValue

initValueMode

localMktTz

enablingControlType

disablingControlType

disablingControlLabel

displayableDate

displayableTimeZone

editableTimeZone

time

int

localMktTz_t

string

string

string

string

boolean

boolean

TextField_tStandard text field.initValuestring
SingleSelectList_tAffords the user the ability to select one item from a list.initValuestring
MultiSelectList_tAffords the user the ability to select many items from a list. Values extracted from this type of control are expected to be transmitted using a MultipleStringValue or MultipleCharValue FIX type.initValueMultipleStringValue
Slider_tDraggable slider with labels that map to values.initValue

increment

incrementPolicy

string

double

string

CheckBox_tStandard check box – initialized to checked or unchecked.initValue

checkedEnumRef

uncheckedEnumRef

boolean

string

string

CheckBoxList_tA list of check boxes where multiple selections can be made. Values extracted from this type of control are expected to be transmitted using a MultipleStringValue or MultipleCharValue FIX type.initValue

orientation

MultipleStringValue

Orientation

SingleSpinner_tA numeric field that has arrows to increment and decrementinitValue

increment

incrementPolicy

double

double

string

DoubleSpinner_tA numeric field that has two sets of arrows to increment and decrement by different values (say for pennies and dollars). When pressed, the right-most pair of arrows will increment (or decrement) the value of the control by the value of outerIncrement. Pressing the other pair of arrows will cause the value to be incremented (or decremented) by the value of innerIncrement.initValue

innerIncrement

innerIncrementPolicy

outerIncrement

outerIncrementPolicy

double

double

string

double

string

DropDownList_tMore specific derivation of a SingleSelectList. E.g., a combo box.initValuestring
EditableDropDownList_tMore specific derivation of a SingleSelectList. E.g., an editable combo box.initValuestring
RadioButton_tStandard radio button, but with no associated group.initValue

radioGroup

checkedEnumRef

uncheckedEnumRef

boolean

string

string

string

RadioButtonList_tMore specific derivation of a SingleSelectList. Several items are presented with an associated radio button where the user can select only one of them.initValue

orientation

string

Orientation

Label_tPlain text.

Note that the label control’s text may be updated through the execution of a StateRule.

initValuestring

For example, in the following code snippet a control, “StartTimeCntl”, is defined as being a “Clock_t”. An initial value of “09:30” has been specified.

<Control ID="StartTimeCntl" xsi:type="lay:Clock_t" label="Start Time" initValue="09:30" localMktTz="America/New_York" parameterRef="StartTime"/>

Dependencies and Structural Constraints beyond XML Schema

While W3C XML Schema is useful for describing the structure of an XML-based language, it still has its limitations. For example, it only allows the specification of whether attributes are required or optional. Furthermore, there is no way to specify more complex constraints between attributes or between attributes or elements.

With this in mind the following table presents further constraints to which XML document instances must conform if they are to be FIXatdl® compliant.

IDAffected ElementsAffected AttributesDescription
1EditlogicOperator, operatorWithin an Edit element, the attributes operator and logicOperator are mutually exclusive.
2Editfield2, valueWithin an Edit element, the attributes field2 and value are mutually exclusive.
3StrategyPanelA StrategyPanel element cannot have as child elements both Control elements and StrategyPanel elements.
4Editfield, field2Within an Edit element the attributes field and field2 must refer to either a pre-declared parameter name or a standard FIX field name (taken from the FIX specification) pre-pended with the string “FIX_”.
5EditvalueWithin an Edit element, the type of the value attribute must safely match with the type of parameter specified by the field attribute.
6EditlogicOperator, operatorIf an Edit element is a child of another Edit element then the parent Edit element must have its logicOperator attribute defined and its operator attribute undefined.
7Editfield1, field2When a comparison is made between two operands, the values of the operands must either be of the same type or be able to be converted in such a way so that the resulting converted types are the same.
8ControlparameterRefIf Control/@parameterRef is defined it must be equal to the name attribute of one of the defined Parameter elements.
9EnumPair

ListItem

enumIDIf a Control is linked to a Parameter via use of Control/@parameterRef, and the Control contains ListItem elements, then the Parameter must contain EnumPair elements. Furthermore, each of the Control’s ListItem/@enumID values must match one and only one of the Parameter element’s EnumPair/@enumID values.
10ControlcheckedEnumRef

uncheckedEnumRef

If values for Control/@checkedEnumRef or Control/@uncheckedEnumRef are provided then Control/@parameterRef must also be provided. Furthermore, the values of Control/@checkedEnumRef and Control/@uncheckedEnumRef each must be equal to one of the EnumPair/@enumID values of the Parameter element referred to by Control/@parameterRef.

A Sample FIXatdl® Document

The following listing shows a FIXatdl® instance document describing one strategy with six parameters. The associated controls to be rendered are aligned horizontally within two panels which are, in turn, are vertically aligned. Three validation rules are provided.

<Strategies
    xmlns="http://www.fixprotocol.org/FIXatdl-1-2/Core"
    xmlns:val="http://www.fixprotocol.org/FIXatdl-1-2/Validation"
    xmlns:lay="http://www.fixprotocol.org/FIXatdl-1-2/Layout"
    xmlns:flow="http://www.fixprotocol.org/FIXatdl-1-2/Flow"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.fixprotocol.org/FIXatdl-1-2/Core fixatdl-core-1-2.xsd"
    strategyIdentifierTag="27620"
    versionIdentifierTag="27621">

    <Strategy name="Tazer1" uiRep="Tazer" wireValue="Tazer" version="1" fixMsgType="D"
      providerID="ABC">

        <!--
            Declare the algorithm to be applicable in The U.S., Canada and the UK.
        -->
        <Regions>
            <Region name="TheAmericas" inclusion="Include">
                <Country CountryCode="US" inclusion="Include"/>
                <Country CountryCode="CA" inclusion="Include"/>
            </Region>
            <Region name="EuropeMiddleEastAfrica" inclusion="Include">
                <Country CountryCode="UK" inclusion="Include"/>
            </Region>
        </Regions>

        <!--
            Declare the markets where order may be executed.
        -->
        <Markets>
            <Market MICCode="BATS" inclusion="Include"/>
            <Market MICCode="NYSE" inclusion="Include"/>
            <Market MICCode="XTSE" inclusion="Include"/>
            <Market MICCode="LSE" inclusion="Include"/>
        </Markets>

        <!--
        This algorithm will be applied to equity common stock.
        -->
        <SecurityTypes>
            <SecurityType name="CS" inclusion="Include"/>
        </SecurityTypes>

        <!--
            Parameter declarations

            Five parameters are declared here. The order recipient may reject
            orders with: EndTime(7603) values greater than 4pm New York time;
            SweepDistribution(7640) values other than "U" or "G"; Variance(7641)
            values outside the range [0.01, 0.50]; and DisplayQty(7645)
            values less than 0.
        -->
        <Parameter name="StartTime" xsi:type="UTCTimestamp_t" fixTag="27602" use="required"/>
        <Parameter name="EndTime" xsi:type="UTCTimestamp_t" fixTag="27603" use="required"
          maxValue="16:00:00" localMktTz="America/New_York "/>
        <Parameter name="DisplayQty" xsi:type="Int_t" fixTag="27645" use="optional"
          minValue="0"/>
        <Parameter name="SweepDistribution" xsi:type="Char_t" fixTag="27640" use="required">
            <EnumPair enumID="e_Uniform" wireValue="U"/>
            <EnumPair enumID="e_Gaussian" wireValue="G"/>
        </Parameter>
        <Parameter name="Variance" xsi:type="Float_t" fixTag="27641" use="optional"
          minValue="0.01" maxValue="0.50"/>
        <Parameter name="AllowDarkPoolExec" xsi:type="Char_t" fixTag="27642" use="required">
            <EnumPair enumID="e_True" wireValue="T"/>
            <EnumPair enumID="e_False" wireValue="F"/>
        </Parameter>

        <!--
            Description and Layout of GUI controls
        -->
        <lay:StrategyLayout>
            <lay:StrategyPanel orientation="VERTICAL">
                <lay:StrategyPanel orientation="HORIZONTAL">
                    <!--
                        The StartTimeClock control will be initialized to 9:30am (New
                        York time). If it is past 9:30am when the control is rendered,
                        then it will be initialized with the current time.

                        Note that the user will see the 9:30am New York time rendered
                        according to his/her environment's local timezone setup.
                    -->
                    <lay:Control xsi:type="lay:Clock_t" ID="StartTimeClock" label="Start Time"
                      parameterRef="StartTime" initValue="09:30:00" localMktTz="America/New_York"
                      initValueMode="1"/>

                    <!--
                      The EndTimeClock control is not initialized.
                    -->

                    <lay:Control xsi:type="lay:Clock_t" ID="EndTimeClock" label="End Time"
                      parameterRef="EndTime"/>

                    <!--
                        The next control is not bound to any parameter. It is intended to
                        direct the behavior of the DisplayQty control. It presents 3
                        options in a drop-down list.
                    -->

                    <lay:Control ID="DQHandling" xsi:type="lay:DropDownList_t"
                      label="Display Handling">
                        <lay:ListItem enumID="choice1" uiRep="Send nothing"/>
                        <lay:ListItem enumID="choice2" uiRep="Send 0"/>
                        <lay:ListItem enumID="choice3" uiRep="Send what user enters"/>
                    </lay:Control>

                    <!--
                        The DisplayQty control is bound to the DisplayQty parameter. The
                        control is un-initialized when it is first rendered. Its
                        subsequent behavior is directed by DQHandling control. When
                        DQHandling's choice1 is selected DisplayQty will revert to an
                        un-initialized state and become disabled. When DQHandling's
                        choice2 is selected, DisplayQty's value will be set to 0 and
                        it will become disabled. When DQHandling's choice3 is selected,
                        DisplayQty will be enabled and will accept user input.
                    -->

                    <lay:Control xsi:type="lay:TextField_t" ID="DisplayQty" label="Display Qty"
                      parameterRef="DisplayQty">
                        <flow:StateRule enabled="true">
                          <val:Edit field="DQHandling" operator="EQ" value="choice3"/>
                        </flow:StateRule>
                        <flow:StateRule value="{NULL}">
                            <val:Edit field="DQHandling" operator="EQ" value="choice1"/>
                        </flow:StateRule>
                        <flow:StateRule value="0">
                            <val:Edit field="DQHandling" operator="EQ" value="choice2"/>
                        </flow:StateRule>
                    </lay:Control>
                </lay:StrategyPanel>
                <lay:StrategyPanel orientation="HORIZONTAL">
                    <!--
                        The SweepDist control will present the 2 options corresponding to
                        the enumPairs of the SweepDistribution parameter.
                    -->
                    <lay:Control ID="SweepDist" xsi:type="lay:DropDownList_t"
                      label="Sweep Distribution"
                      parameterRef="SweepDistribution" initValue="Uniform">
                        <lay:ListItem enumID="e_Uniform" uiRep="Uniform"/>
                        <lay:ListItem enumID="e_Gaussian" uiRep="Gaussian"/>
                    </lay:Control>
                    <!--
                        The Variance control is enabled only when SweepDist's e_Gaussian
                        item is selected.
                    -->
                    <lay:Control xsi:type="lay:SingleSpinner_t" ID="Variance" label="Variance"
                      parameterRef="Variance">
                        <flow:StateRule enabled="true">
                            <val:Edit field="SweepDist" operator="EQ" value="e_Gaussian"/>
                        </flow:StateRule>
                    </lay:Control>
                </lay:StrategyPanel>
                <lay:StrategyPanel orientation="HORIZONTAL">
                    <lay:Control xsi:type="lay:CheckBox_t" ID="DPOption"
                      label="Allow Dark Pool Execution" parameterRef="AllowDarkPoolExec"
                      checkedEnumRef="e_True" uncheckedEnumRef="e_False">
                    </lay:Control>
                </lay:StrategyPanel>
            </lay:StrategyPanel>
        </lay:StrategyLayout>

        <!--
            Validation Section

            Note that the attribute, field, always refers to a Parameter name and
            not a Control ID. Also note that short-circuit evaluation is fully
            exploited.
        -->
        <val:StrategyEdit errorMessage="End Time should be later than Start Time">
            <val:Edit field="EndTime" operator="GT" field2="StartTime"/>
        </val:StrategyEdit>

        <val:StrategyEdit errorMessage="Variance is required when Sweep Distribution is
          Gaussian.">
            <val:Edit logicOperator="OR">
                <val:Edit field="SweepDistribution" operator="NE" value="G"/>
                <val:Edit logicOperator="AND">
                    <val:Edit field="SweepDistribution" operator="EQ" value="G"/>
                    <val:Edit field="Variance" operator="EX"/>
                </val:Edit>
            </val:Edit>
        </val:StrategyEdit>

        <val:StrategyEdit errorMessage="Variance must be between 0 and 2.0">
            <val:Edit logicOperator="OR">
                <val:Edit field="SweepDistribution" operator="NE" value="G"/>
                <val:Edit logicOperator="AND">
                    <val:Edit field="SweepDistribution" operator="EQ" value="G"/>
                    <val:Edit field="Variance" operator="EX"/>
                    <val:Edit field="Variance" operator="GT" value="0.0"/>
                    <val:Edit field="Variance" operator="LT" value="2.0"/>
                </val:Edit>
            </val:Edit>
        </val:StrategyEdit>
    </Strategy>
</Strategies>

Appendix 1 – LocalMktTz Type

The valid values of attributes of the type LocalMktTz can be found at IANA. In the FIXatdl® schema a simple type, “LocalMktTz_t”, has been defined as a string which is restricted to the zone names of the TZ environment variable.


  1. Extended attributes specific to xsi:type↩︎
  2. Extended attributes specific to xsi:type↩︎
  3. Deprecated↩︎
  4. Deprecated↩︎
  5. Attributes specific to xsi:type.↩︎
  6. Attributes specific to xsi:type.↩︎
